Product Specifications

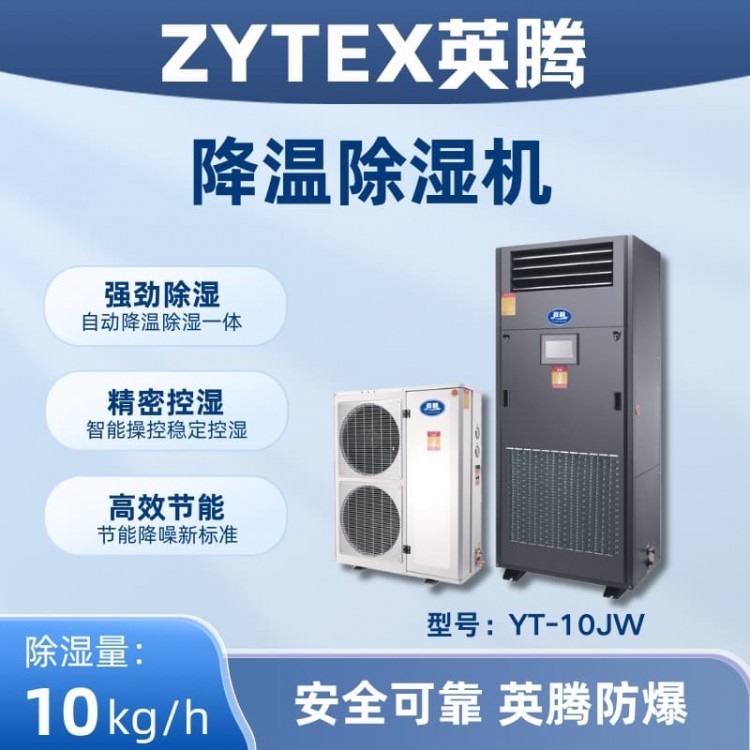

Model: YT-10JW
Brand: YingTeng
Engine performance:
Dehumidification capacity: 10.1 kg/h, Cooling capacity: 12.5 kW, Airflow: 2600 m³/h, External static pressure: 0-30 Pa, Power supply: 3/NPEAC 380V 50Hz, Input power: 3.5 kW.
Compressor:
Type: Fully enclosed rotary compressor, Quantity: 1, Control Type: External balance thermal expansion valve.
Indoor unit:
Evaporator in the form of high-efficiency copper tube with aluminum fin, centrifugal fan for high efficiency,绯colored double-layer nylon filter for filter, threaded pipe connection, liquid pipe 1×φ12mm, air pipe 1×φ19mm, length 767mm, width 463mm, height 1720mm, weight 76kg, quantity 1, condenser in the form of high-efficiency copper tube with aluminum fin.
Outdoor Unit:
Type of condenser fan: high-efficiency axial flow fan, Quantity: 1, Length: 840mm, Width: 736mm, Height: 780mm, Weight: 115kg.
Cooling and dehumidification units are designed to provide heating, cooling, and dehumidification for environments to meet indoor temperature and humidity requirements. These units use evaporators to cool and dehumidify the air, while also recovering the condensation heat from the system to compensate for the heat lost during cooling and dehumidification, making it an efficient and energy-saving dehumidification method. They are widely used in industries such as civil air defense projects, tobacco, petrochemicals, electronics, aerospace, purification engineering, laboratories, telecommunications equipment rooms, archives, food storage, pharmaceuticals, and special glass, where high temperature and humidity control is essential.
Cooling and Dehumidification Machine Working Principle:
As ambient air passes over the evaporator surface, due to the evaporator's temperature being below the dew point of the air, water vapor condenses in the collecting tray and is drained out through pipes. This reduces the air's humidity content, allowing for indoor heating, cooling, and dehumidification based on the user's requirements for the environment's temperature and humidity.
Cooling and Dehumidifying Machines effectively combine refrigeration and dehumidification into one unit, primarily consisting of: the refrigeration section, the preliminary filtration section, and the circulating fan section. With an air supply from above and exhaust from the front side below, the microcomputer programming ensures the effective operation of each section to meet the requirements for temperature and humidity in the operating environment.
Application Fields of Cooling and Dehumidifying Machines:
Aerospace & Aviation: Used for assembly and testing facilities, providing air temperature and humidity control for satellites and spacecraft.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for pharmaceutical production have become increasingly important. Yingteng's cooling and dehumidification units can create an excellent environment for pharmaceutical production to ensure product quality.
Electronics Industry: Low humidity requirements for the manufacturing of precision equipment such as electronic components, aerospace devices, and lithium batteries.
Food Industry: Dehumidifying coolers with sterilization capabilities are particularly suitable for process scenarios requiring constant temperature and dry air for heat-sensitive food production lines, such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive: Stored items, books, documents, etc. can be preserved in a temperature and humidity controlled environment, ensuring long-term preservation without damage.
Automotive Industry: Dehumidification and cooling units are an indispensable air treatment equipment in the production of automotive parts within the automotive industry.
