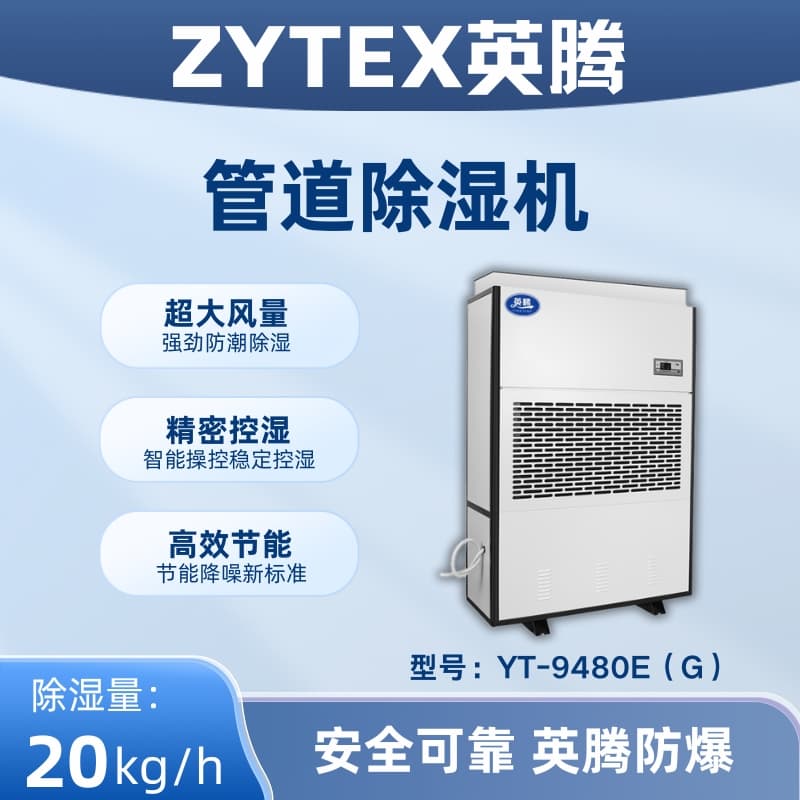

Model: YT-9480E(G)

Brand: YingTeng

Overall performance

Dehumidification Rate: 21k/h, Airflow: 5000m³/h, Power Supply: 3/NPEAC 380V 50Hz, Input Power: 7.7kW.

Compressor

Type: Full Enclosed Rotary Compressor, Quantity: 2

Control Type: Fine Tube.

Evaporator and Filter

Evaporator Type: High-efficiency copper tube with aluminum fin filter

Dimensions and Weight

Length: 1190mm, Width: 570mm, Height: 1250mm, Weight: 210kg

Note: Customized explosion-proof models are available. The above technical specifications are subject to change without prior notice; please refer to the actual machine for the most accurate information!

Cabinet-Type (Vertical) Pipeline Dehumidifier Structural Type: Standard pipeline dehumidifiers come with fans for easy installation. They are categorized by air flow direction: A) Forward Airflow (Grille Return Air), B) Forward Airflow (Hood Airflow), C) Rear Airflow (Flange Return Air), and Top Airflow (Flange Airflow). Available in three configurations. Customization is possible according to customer requirements (with features such as R485 remote communication port, explosion-proof, PLC programmable remote control, high-temperature, and low-temperature types).

Desiccant dehumidifiers are enhanced from standard dehumidifiers by adding specific configurations, adjusting, and increasing airflow and pressure. The intake and exhaust ports are connected to the air ducts via flanges, extracting moist indoor air through the facility's piping for treatment. The dried air is then recirculated back into the room, thereby achieving dehumidification through a continuous cycle.

Application Fields: Pharmaceutical, leather goods, libraries, archives, books, cultural relics, printing, electronics, chemicals, aerospace, precision equipment, power, laboratories, warehouses, workshops, and other locations with high humidity requirements.
