Product Specifications

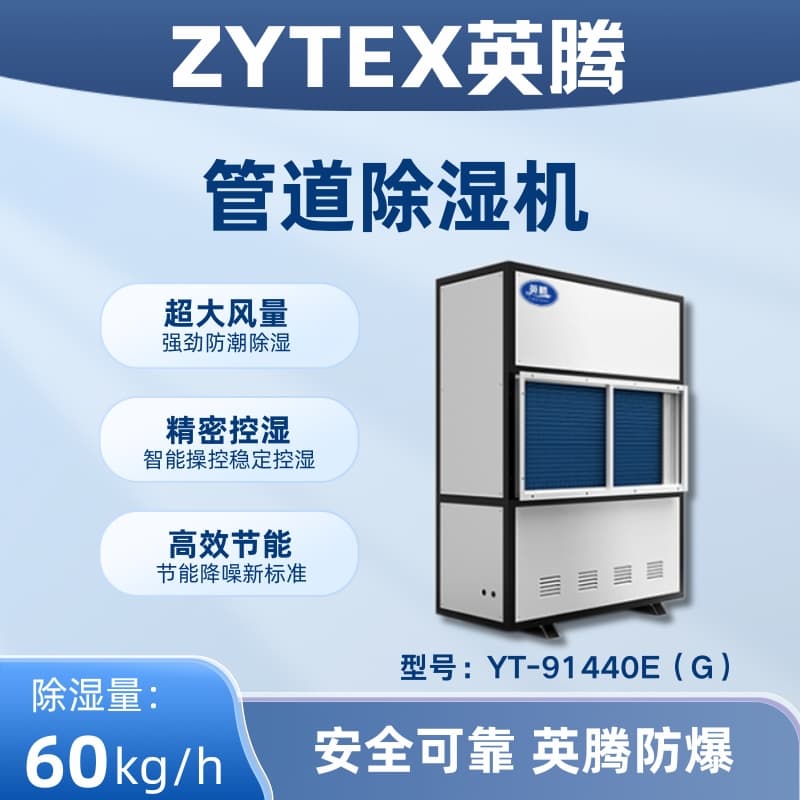

Model: YT-91440E(G)
Brand: YingTeng
Overall performance
Dehumidification Rate: 60k/h Airflow: 16,000 m³/h Power Supply: 3/NPEAC 380V 50Hz Input Power: 27kW
Compressor
Type: Totally Enclosed Rotating Compressors, Quantity: 3
Control Type: Expanding Valve.
Evaporator and Filter
Evaporator Type: High-efficiency copper tube with aluminum fin filter
Dimensions and Weight
Length: 2250mm Width: 1000mm Height: 2200mm Weight: 900kg
Note: Customizable explosion-proof models available. The above technical specifications are subject to change without notice; please refer to the actual machine for the most accurate information!
Cabinet-type (Vertical) Duct Dehumidifier Structural Types: Standard duct dehumidifiers come with a fan for easy installation. They are categorized by air intake and exhaust methods: A. Front intake (grille return air), front exhaust (hood blowing air); B. Rear intake (flange return air), top exhaust (flange intake); C. Front intake (grille return air), top exhaust (flange blowing air). Customization is available upon customer request, including (R485 remote communication port, explosion-proof, PLC programmable remote control, high-temperature, low-temperature) options.
The desiccant dehumidifier is an upgraded version of a standard dehumidifier, featuring additional configurations, increased air volume and pressure, and connections between the inlet and outlet using flanges and ducts. By utilizing the site's piping, it extracts moist air from the interior for processing, then returns the dried air to the room, thus achieving the dehumidification through this cycle.
Application Fields: Pharmaceutical, leather goods, libraries, archives, books, antiques, printing, electronics, chemicals, aerospace, precision equipment, power, laboratories, warehouses, workshops, and other places with high humidity requirements.
