Product Specifications

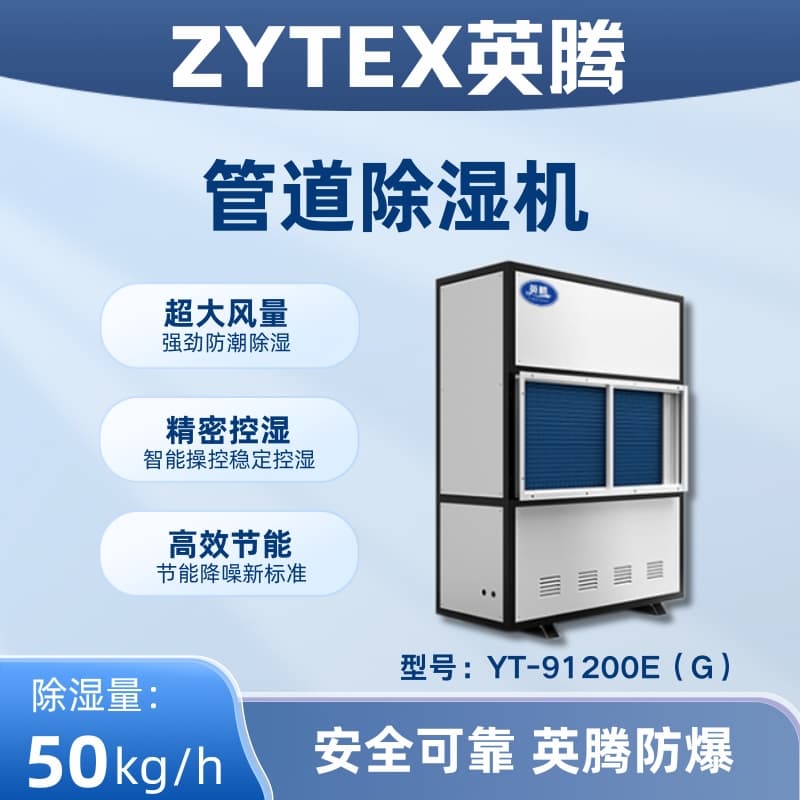

Model: YT-91200E(G)

Brand: YingTeng

Overall performance

Dehumidification capacity: 51k/h Airflow: 13,000m³/h Power supply: 3/NPEAC 380V 50Hz Input power: 21kW.

Compressor

Type: Fully Enclosed Rotary Compressors, Quantity: 2

Control Type: Expansion Valve.

Evaporator and Filter

Evaporator Type: High-efficiency copper tube with aluminum fin filter

Dimensions and Weight

Length: 2250mm, Width: 1000mm, Height: 2200mm, Weight: 900kg

Note: Customizable explosion-proof models available. The above technical specifications are subject to change without notice; please refer to the actual machine for the most accurate information!

Cabinet-type (Vertical) Drying Dehumidifier Structure Type: Standard pipe drying dehumidifiers come with a fan for easy installation. They are categorized by air flow direction: A - Forward Airflow (Grille Return Air), Front Exhaust Air (Hood Supply Air), B - Rear Airflow (Flange Return Air), Top Exhaust Air (Flange Inlet Air), and C - Forward Airflow (Grille Return Air), Top Exhaust Air (Flange Supply Air). Customization is available according to customer requirements, including (R485 Remote Communication Port, Explosion-proof, PLC Programmable Remote Control, High Temperature, Low Temperature) options.

Pipe dehumidifiers are enhanced versions of standard dehumidifiers, featuring additional configurations, adjusted and increased airflow and pressure. The intake and exhaust ports are connected to the ductwork using flanges. By utilizing the pipeline at the site, they remove damp air from the indoor environment for processing. The dried air is then recirculated back into the room, achieving the dehumidification goal through this continuous cycle.

Application Fields: Pharmaceutical, leather goods, libraries, archives, books, cultural relics, printing, electronics, chemicals, aerospace, precision equipment, power, laboratories, warehouses, workshops, etc., where high humidity requirements are necessary.
