Product Specifications

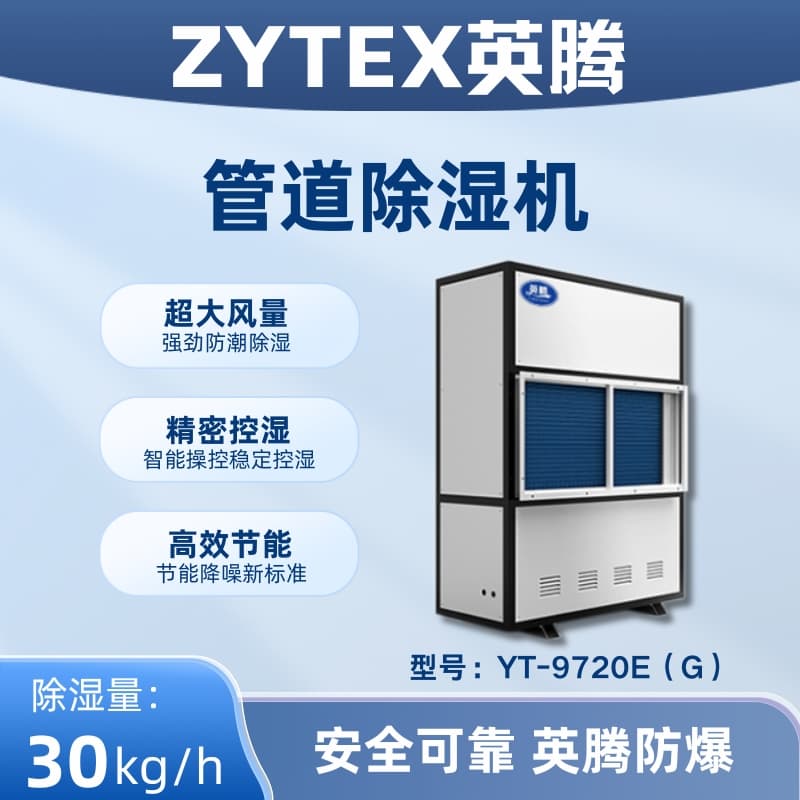

Model: YT-9720E(G)

Brand: Yingten

Overall performance

Dehumidification capacity: 30k/h, Airflow: 8000m³/h, Power supply: 3/NPEAC 380V 50Hz, Input power: 14.2kW.

Compressor

Type: Totally Enclosed Rotary Compressor, Quantity: 3

Control Type:膨胀阀.

Evaporator and Filter

Evaporator Type: High-Efficiency Copper Tubing with Aluminum Fin Filter

Dimensions and Weight

Length: 1450mm, Width: 780mm, Height: 1350mm, Weight: 340kg

Note: Customizable explosion-proof models available. The above technical specifications are subject to change without notice; please refer to the actual machine for the most accurate information!

Cabinet-type (Vertical) Duct Dehumidifier Structural Types: Standard duct dehumidifiers come with a fan, easy to install. Divided by the air intake and exhaust methods: A. Front intake (grille return air), front exhaust (hood supply air); B. Rear intake (flange return air), top exhaust (flange intake air); C. Front intake (grille return air), top exhaust (flange supply air). Custom options available upon customer request (R485 remote communication port, explosion-proof, PLC programmable remote control, high-temperature, low-temperature types).

The pipe dehumidifier is an enhanced version of a standard dehumidifier, featuring additional configurations, adjusted and increased airflow and pressure. The intake and exhaust ports are connected to the ductwork via flanges. By utilizing the pipeline of the application site, it extracts moist air from the indoor environment for processing. The dried air is then recirculated back into the room, thus achieving the dehumidification goal through this continuous cycle.

Application Fields: Pharmaceutical, leather goods, libraries, archives, books, antiques, printing, electronics, chemicals, aerospace, precision equipment, electricity, laboratories, warehouses, workshops, etc., which have high humidity requirements.
