Product Specifications

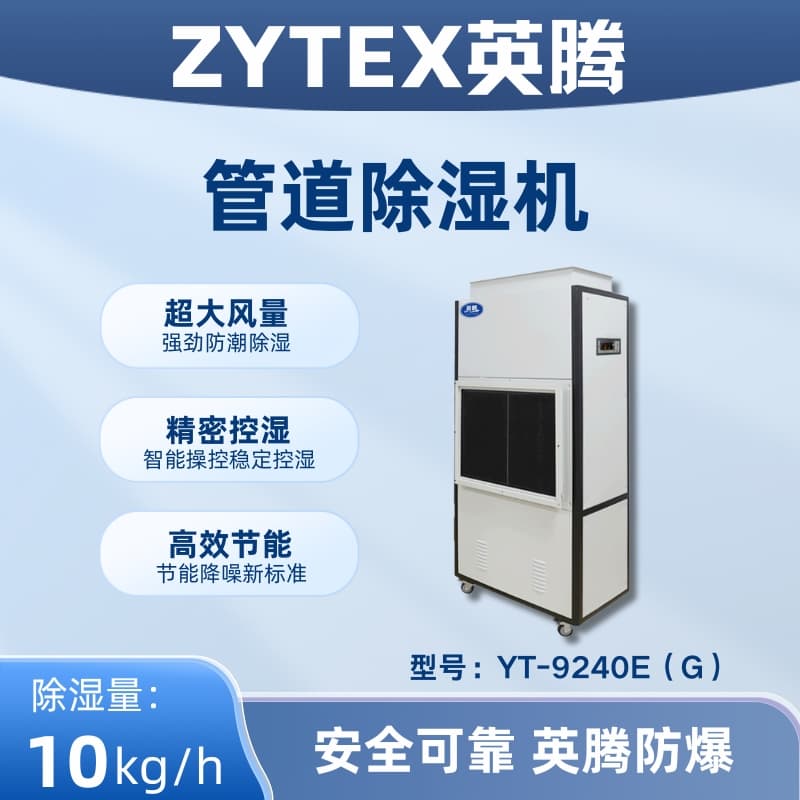

Model: YT-9240E(G)

Overall performance

Dehumidification Capacity: 10.5k/h Airflow: 2600m³/h Power Supply: 3/NPEAC 380V 50Hz Input Power: 3.2kW

Compressor

Type: Full Enclosed Rotary Compressor, Quantity: 1

Control Form: Fine Tube.

Evaporator and Filter

Evaporator Type: High-efficiency copper tube with aluminum fin filter

Dimensions and Weight

Length: 780mm, Width: 570mm, Height: 1250mm, Weight: 100kg

Note: Customizable explosion-proof models available. The above technical specifications are subject to change without notice; please refer to the actual machine for the most accurate information!

Cabinet-type (Vertical) Pipe Dehumidifier Structure Type: Standard pipe dehumidifiers come with a fan for easy installation. They are categorized by air intake and exhaust methods: A) Forward Air Intake (Grille Return Air), Front Exhaust Air (Hood Supply Air), B) Rear Air Intake (Flange Return Air), Top Exhaust Air (Flange Supply Air), and C) Forward Air Intake (Grille Return Air), Top Exhaust Air (Flange Supply Air) - three types in total. Customization is available upon customer request, including (R485 Remote Communication Port, Explosion-proof Type, PLC Programmable Remote Control Type, High-Temperature Type, Low-Temperature Type).

The pipeline dehumidifier is an enhanced version of a standard dehumidifier, featuring additional configurations, adjusted and increased airflow and pressure. The inlet and outlet are connected to the air ducts via flanges, extracting moist air from indoors through the pipeline of the usage location for processing. The dried air is then recirculated back into the room, thus achieving the dehumidification goal through this continuous cycle.

Application Fields: Pharmaceutical, leather goods, libraries, archives, books, antiques, printing, electronics, chemicals, aerospace, precision equipment, power, laboratories, warehouses, workshops, and other areas with high humidity requirements.
