Product Specifications

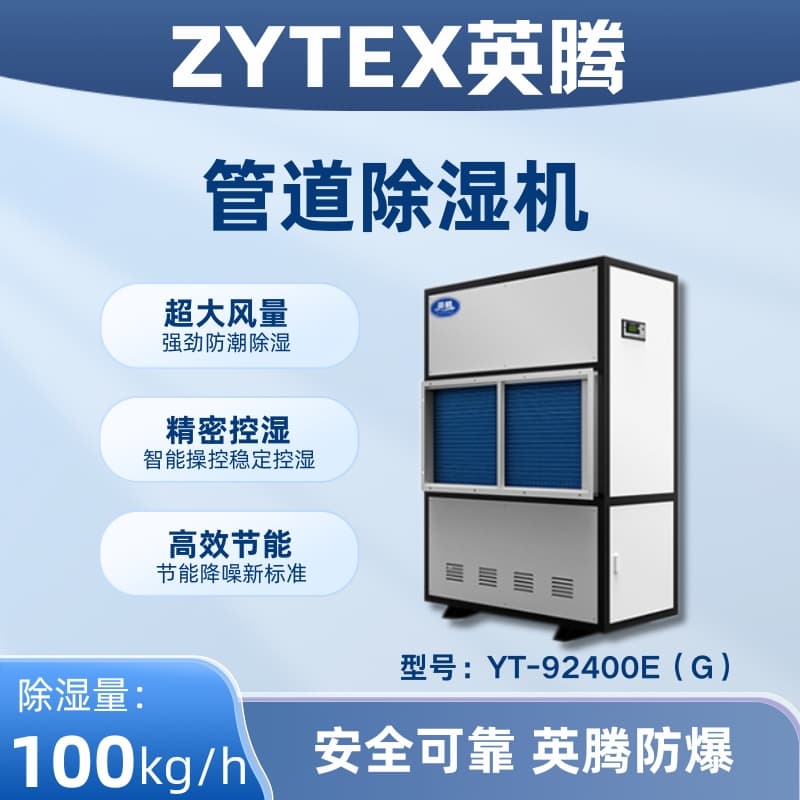

Model: YT-92400E(G)

Brand: YingTeng

Overall Performance

Dehumidification Rate: 100k/h, Airflow: 25,000m³/h, Power Supply: 3/NPEAC 380V 50Hz, Input Power: 40kW.

Compressor

Quantity of fully enclosed rotary compressors: 4

Control Type: Expanding Valve.

Evaporator and Filter

Evaporator Type: High-efficiency copper tube with aluminum fin filter type: High-efficiency copper tube with aluminum fin

Dimensions and Weight

Length: 3300mm, Width: 1200mm, Height: 2200mm, Weight: 1400kg

Note: Customizable explosion-proof models available. Please note that the above technical specifications are subject to change without prior notice; the actual machine is the standard!

Cabinet-type (Vertical) Duct Dehumidifier Structural Types: Standard duct dehumidifiers come with a fan for easy installation. They are categorized by air intake and exhaust methods: A. Front intake (grille return air), front exhaust (hood blowing air); B. Rear intake (flange return air), top exhaust (flange intake); C. Front intake (grille return air), top exhaust (flange blowing air). Customization options are available according to customer requirements, including (R485 remote communication port, explosion-proof, PLC programmable remote control, high-temperature, low-temperature models).

The pipeline dehumidifier is an enhanced version of a standard dehumidifier, featuring additional configurations and adjustments to increase air volume and pressure. The intake and exhaust openings are connected to the ductwork via flanges, extracting moist air from indoors through the pipeline of the application site for processing. The dried air is then recirculated back into the room, thereby achieving the dehumidification goal through this continuous cycle.

Application Fields: Pharmaceuticals, leather goods, libraries, archives, books, cultural relics, printing, electronics, chemicals, aerospace, precision equipment, electricity, laboratories, warehouses, workshops, and other places with high humidity requirements.
