Product Specifications

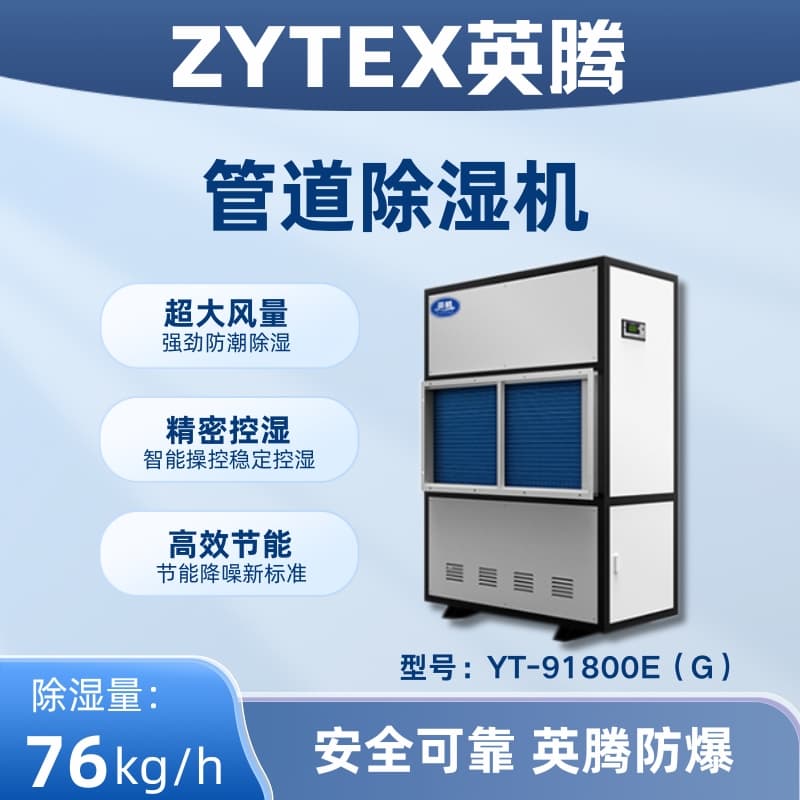

Model: YT-91800E(G)
Brand: YingTeng
Overall Performance
Dehumidification Rate: 76k/h Airflow: 19,000m³/h Power Supply: 3/NPEAC 380V 50Hz Input Power: 30kW
Compressor
Quantity of fully enclosed rotary compressors: 3
Control Type: Expanding Valve.
Evaporator and Filter
Evaporator Type: High-Efficiency Copper Tube with Aluminum Fin Filter Type: High-Efficiency Copper Tube with Aluminum Fin
Dimensions and Weight
Length: 2250mm, Width: 1000mm, Height: 2200mm, Weight: 1100kg
Note: Customizable explosion-proof models available. The above technical specifications are subject to change without notice; please refer to the actual machine for the most accurate information!
Cabinet-type (Vertical) Duct Dehumidifier Structural Styles: Standard duct dehumidifiers come with a fan for easy installation. They are categorized by the direction of air flow: A. Front intake (grille return air), front exhaust (hood blowing air); B. Rear intake (flange return air), top exhaust (flange intake); C. Front intake (grille return air), top exhaust (flange blowing air). Customization is available upon customer request, including (R485 remote communication port, explosion-proof type, PLC programmable remote control type, high-temperature type, low-temperature type).
The desiccant dehumidifier is an enhanced version of a standard dehumidifier, featuring additional configurations, adjusted and increased airflow and pressure. The inlet and outlet are connected to the ducting via flanges, extracting moist air from the room through the facility's piping system for processing. The dried air is then recirculated back into the room, thereby continuously achieving dehumidification.
Application Fields: Pharmaceutical, leather goods, libraries, archives, books, cultural relics, printing, electronics, chemicals, aerospace, precision equipment, power, laboratories, warehouses, workshops, etc., where high humidity control is required.
