Product Specifications

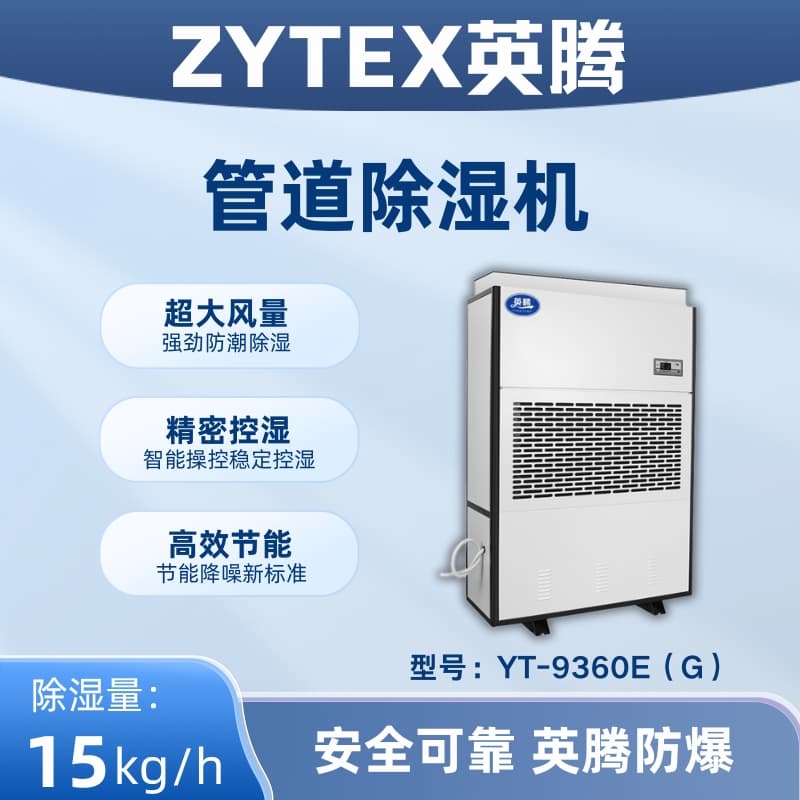

Model: YT-9360E(G)

Brand: YingTeng

Overall performance

Dehumidification Capacity: 15.5 k/h

Airflow: 4000 m³/h

Power: 3/NPEAC 380V 50Hz

Input Power: 5.8 kW.

Compressor

Type: Fully Enclosed Rotary Compressor

Quantity: 2

Control Type: Thin Tube.

Evaporator and Filter

Evaporator Type: High-efficiency copper tube with aluminum fin filter type: High-efficiency copper tube with aluminum fin

Dimensions and Weight

Length: 1190mm, Width: 570mm, Height: 1250mm, Weight: 200kg

Note: Customizable explosion-proof models available. The above technical specifications are subject to change without notice; please refer to the actual machine for the most accurate information!

Cabinet (Vertical) Pipeline Dehumidifier Structural Types: Standard pipeline dehumidifiers come with a fan for easy installation. They are categorized by the direction of air intake and exhaust: A) Front intake (grille return air), front exhaust (hood blowing air); B) Rear intake (flange return air), top exhaust (flange intake); C) Front intake (grille return air), top exhaust (flange blowing air). Customization is available according to customer requirements (with R485 remote communication port, explosion-proof type, PLC programmable remote control type, high-temperature type, low-temperature type).

Desiccant dehumidifiers are enhanced versions of standard dehumidifiers, featuring additional configurations and increased airflow and pressure. The intake and exhaust ports are connected to ductwork using flanges, extracting humid indoor air through the site's piping for processing. The dried air is then recirculated back into the room, thus achieving the dehumidification goal through this continuous cycle.

Application Fields: Pharmaceuticals, leather goods, libraries, archives, books, antiques, printing, electronics, chemicals, aerospace, precision equipment, power, laboratories, warehouses, workshops, and other places with high humidity requirements.
