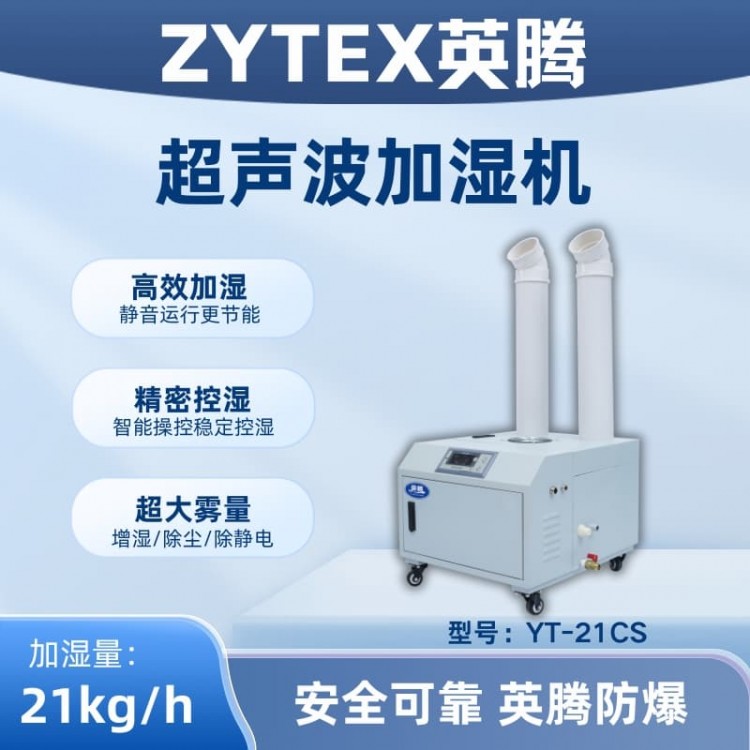

YT-21CS Ultrasonic Humidifier

Model: YT-21CS

Brand: YingTeng

Power: 2100W

Power: 220V~50Hz

Aerosol Particle: <10 micrometers

Net Weight: 62 kg

Humidification Capacity: 21 kg/h

Circulating air volume: 760 m³/h

Mist outlet quantity: 3 x 110mm

Rated Input Current: 9.6A

Dimensions (mm): 650x780X520

Note: The above parameters are for reference only, and no prior notice will be given for any changes. The physical unit shall prevail!

The principle of operation of an ultrasonic humidifier:

The ultrasonic industrial humidifier utilizes electronic ultra-frequency oscillation (oscillation frequency of 17MHz) to produce a natural, floating mist by throwing water away from the surface through the high-frequency resonance of the atomizing plate. It generates 1-5 micron water particles floating in the air without the need for heating or chemicals, thereby increasing the relative humidity of the air.

Ultrasonic Humidifier Usage Conditions: Environmental Temperature: Normal operating temperature is 0-40℃; Water Source: Use clean, neutral tap water.

Ultrasonic Humidifier Product Features:

※The ultrasonic humidifier features an integrated atomization module, with replaceable chips for easy maintenance and on-site operation.

High-efficiency ultrasonic humidifier (close to 100% humidity output), strong humidification intensity, produces fine and even mist particles, quickly achieving the desired relative humidity.

The integrated atomizing core comes with an automatic water level protection device, effectively ensuring the atomizing core stops working automatically when the water level is too low, eliminating the need for additional equipment and saving costs.

Flexible and convenient control, with full automatic humidity control for the ultrasonic humidifier.

Automatic humidity control with a control system equipped with a renowned brand humidity sensor, offering high accuracy and rapid response. Once set, it operates continuously without the need for personnel supervision.

Ultrasonic humidifiers feature an aesthetically pleasing and durable design, resistant to corrosion with a long lifespan.

The ultrasonic humidifier has been tested repeatedly and proven effective over many years, featuring a compact structure and rational design. It operates silently and achieves high misting efficiency for liquids.
