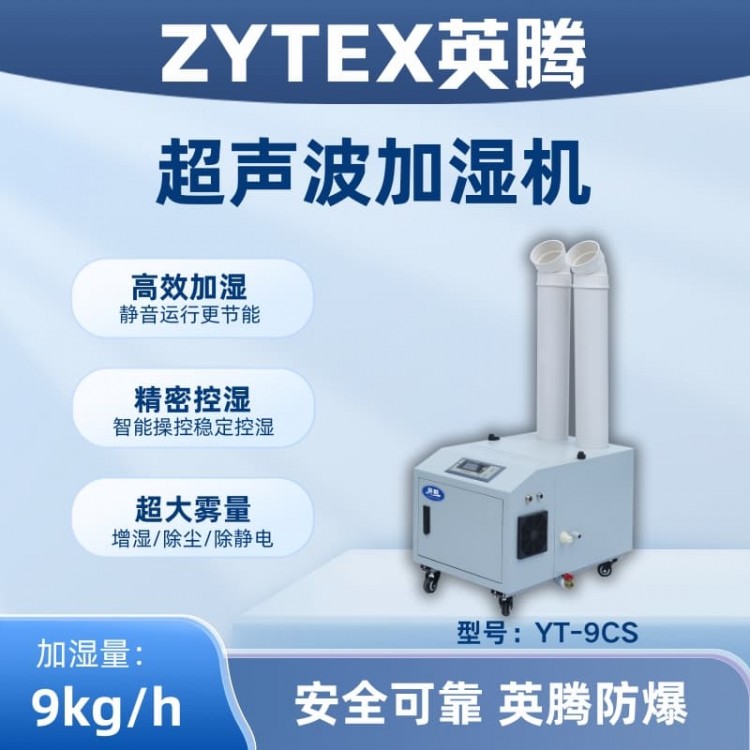

YT-9CS Ultrasonic Humidifier
Model: YT-9CS
Brand: YingTeng
Power: 900W
Power Supply: 220V~50Hz
Application Range (Room Height: 3 meters): 90-130㎡
Net Weight: 35 kg
Moisture Output: 9 kg/h
Airflow Rate: 330 m³/h
Number of exhaust outlets: 2 x 110mm
Rated Input Current: 4.0A
Dimensions (mm): 650x450X470
Note: The above parameters are for reference only, and changes will not be notified in advance. The physical machine is the final authority!
Operation Principle of Ultrasonic Humidifier:
Ultrasonic industrial humidifiers use electronic ultrahigh-frequency oscillation (oscillation frequency of 17MHz). Through the high-frequency resonance of the atomizing plate, water is thrown off the water surface to produce a natural, floating mist. No heating or chemicals are needed to produce 1-5 micron water particles floating in the air, thereby increasing the relative humidity of the air.
◎Operation Conditions for Ultrasonic Humidifier: Environmental Temperature: Normal operating temperature is 0-40℃; Water Source: Use clean, neutral tap water.
Features of Ultrasonic Humidifier:
The ultrasonic humidifier features an integrated atomization module, with replaceable chips for easy maintenance and on-site operation.
High-efficiency ultrasonic humidifier (nearly 100% humidity increase rate), strong humidification intensity, produces fine and even mist particles, quickly reaches the required relative humidity.
The integrated atomizing core comes with an overwater protection device, effectively ensuring the atomizing core automatically stops operating when the water level is too low, eliminating the need for additional equipment and saving costs.
Flexible and convenient operation, with full automatic humidity control for the ultrasonic humidifier.
Automatic humidity control with a well-known brand humidity sensor for high precision and rapid response. Once set, it operates continuously without the need for human supervision.
The ultrasonic humidifier features an aesthetically pleasing and generous design, is corrosion-resistant, and has a long lifespan.
The ultrasonic humidifier has undergone numerous tests and years of practical use, featuring a compact structure and rational design. It operates silently and achieves high liquid atomization efficiency.
