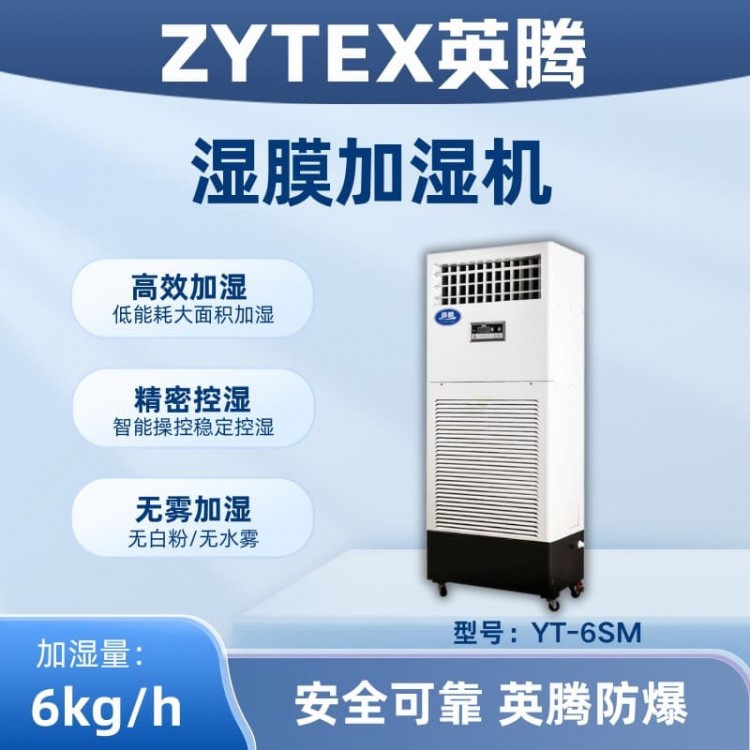

YT-6(SM) Humidifying Machine with Wet Film

Model: YT-6(SM)

Brand: YingTeng

Power: 200W

Power: 220V~50Hz

Application Range (Room Height: 3 meters): 50-90㎡

Net Weight: 48 kg

Moisture Output: 6 kg/h

Recirculating air volume: 2000 m³/h

Operating Temperature: 1-40℃

Rated Input Current: 0.9A

Dimensions (Length x Width x Height mm): 640x350X1600

*Note: The above parameters are for reference only; any changes will not be notified in advance. The physical unit is to be taken as the standard!

Features of Wet Film Humidifier

Fully automatic control, randomly displays the current humidity, with precise control of 5% humidity and free setting.

Wind speed freely adjustable, powerful humidification, wide and even humidification range.

Imported plant wet film, high-efficiency humidification, and independent solenoid valve control ensure safety and reliability.

The storage tank is equipped with dual-bobber detection for precise and stable operation; features an external rotor centrifugal fan for low-noise performance.

Electrical testing, leak protection features; fault alarm function, user-friendly design;

All-plastic sheet metal housing, sleek design, stylish and graceful.

Foot-activated swivel casters, easy and smooth movement.

◎Note: Customizable models with R485 remote control and explosion-proof features available.

The principle of the warm mist humidifier: Water is pumped to the sprinkler system through pipes, with a highly absorbent humidifying material, the wet film, at the bottom. Under gravity, water permeates through the wet film material, absorbed by the wet film, forming a uniform water film. When dry air passes through the wet film material, water molecules absorb heat from the air, vaporize, and evaporate, increasing the humidity of the air, creating a moist atmosphere that is then delivered into the room. The increase in room humidity leads to a decrease in temperature, achieving the purpose of humidification.
