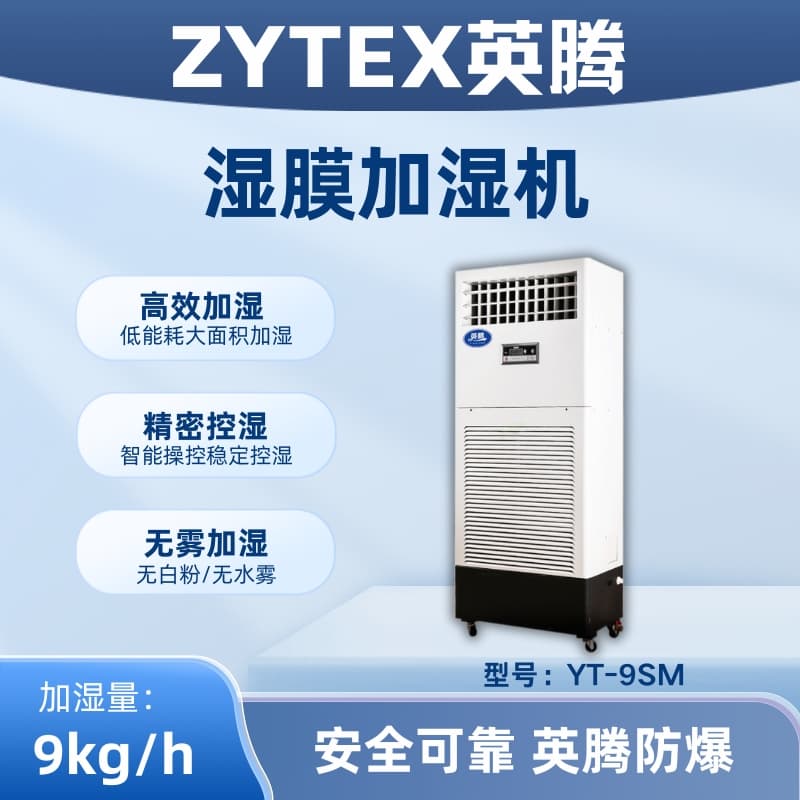

YT-9(SM) Moisture Film Humidifier

Model: YT-9(SM)

Brand: YingTeng

Power: 350W

Power: 220V~50Hz

Application Range (Room Height: 3 meters): 80-120 sqm

Net Weight: 70 kg

Humidification Capacity: 9 kg/h

Recirculating Airflow: 2800 m³/h

Operating Temperature: 1-40℃

Rated Input Current: 1.6A

Dimensions (Length x Width x Height mm): 780x350X1770

Note: The above parameters are for reference only. No notification will be given for any changes. The physical unit shall prevail!

Features of Wet Film Humidifier

Fully automatic control, randomly displays current humidity, precise control at 5% humidity, freely adjustable.

Wind speed freely adjustable, strong humidification, wide and even humidification range.

Imported plant wet film, high-efficiency humidification, independent control with solenoid valves, safe and reliable.

The storage tank uses dual float detection for precise and stable performance; equipped with an external rotor centrifugal fan for low noise operation.

Electronic testing, water leakage protection feature; fault alert function, user-friendly design;

All-plastic sheet metal housing, streamlined design, stylish and elegant;

★ Foot-activated swivel wheels for easy and smooth movement.

◎Note: Customizable R485 remote control models and explosion-proof models available.

The humidifier works by pumping water through pipes to the sprinkling system, where the lower part is a highly absorbent humidifying material—wet membrane. Under the force of gravity, water permeates through the wet membrane material, being absorbed by the material to form a uniform water film. As dry air passes through the wet membrane material, water molecules absorb heat from the air, vaporize, and evaporate, thereby increasing the air humidity and creating a moist air that is supplied to the room. The increased humidity in the room air causes a drop in temperature, achieving the goal of humidification.
