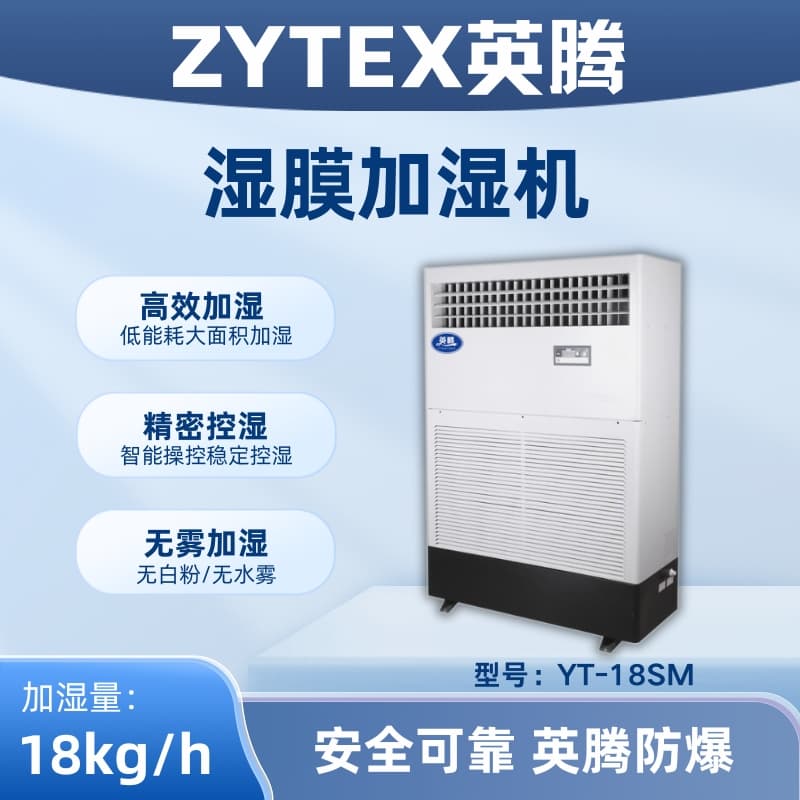

YT-18(SM) Humidifying Machine with Wet Film

Model: YT-18(SM)

Brand: YingTeng

Power: 550W

Power: 220V~50Hz

Application Range (room height: 3 meters): 160-220 sqm

Net Weight: 85 kg

Humidification Capacity: 18 kg/h

Re-circulating Airflow: 4000 m³/h

Operating Environment Temperature: 1-40℃

Rated Input Current: 2.8A

Dimensions (Length x Width x Height mm): 1200x450X1850

Note: The above parameters are for reference only; please note that no prior notification will be given for any changes, and the physical unit is to be taken as the standard!

Humidifier with Wet Film Features

Fully automatic control, randomly displays the current humidity, with 5% humidity precision control and free settings.

Wind speed freely adjustable, strong humidification, wide and even humidification range.

Imported plant wet film, high-efficiency humidification, independent solenoid valve control, safe and reliable.

The storage tank utilizes dual float detection for precise and stable operation; equipped with an external rotor centrifugal fan for low-noise performance.

Electronic testing, water leakage protection features; fault alert function, user-friendly design;

All-plastic sheet metal housing, streamlined design, attractive and elegant.

Foot-activated swivel casters for easy and smooth movement.

◎Note: Customizable R485 remote control models and explosion-proof models available.

The principle of the warm mist humidifier: Water is pumped to the sprinkler system via pipes, with a highly absorbent humidifying material, the wet film, at the bottom. Under gravity, water permeates through the wet film material, absorbed by the material to form a uniform water film. As dry air passes through the wet film material, water molecules absorb heat from the air, vaporize, and evaporate, increasing the air humidity and creating moist air to be delivered into the room. The increase in room air humidity leads to a decrease in temperature, achieving the humidification goal.
