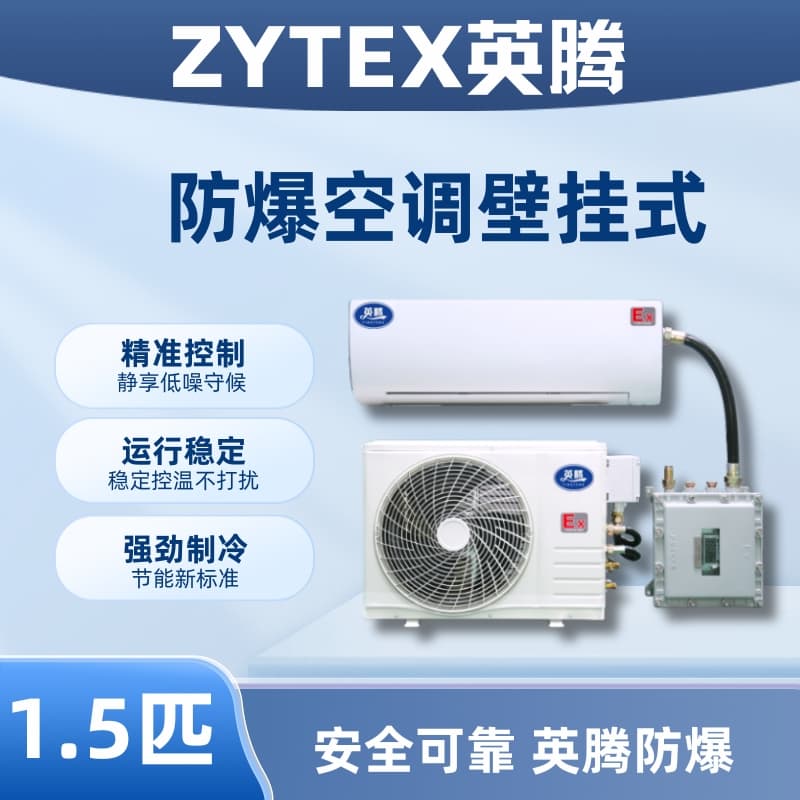

Inten Wall-Mounted Explosion-Proof Air Conditioner

(1.5 HP Ceiling-Cooled Explosion-Proof Air Conditioner)

Brand: YingTeng

Model: BKF-35-Ex

Feature: Cool and Warm Type

Cooling capacity: 3.5 kW

Heating Capacity: 3.85 kW

Rated Voltage: 220V

Rated Frequency: 50 Hz

Cooling/Heating Power: 980W/1300W

Cooling/Heating Current: 4.6/6.1A

Recirculating Airflow: 650 m³/h

Internal/External noise level: 42/50 dB(A)

Waterproof Rating: IPX4

Indoor Unit/Outdoor Unit Weight: 10kg/25kg

Reference Area: 12-18 sqm

Indoor unit dimensions: 1630*300*230mm

Outdoor Unit Dimensions: 870*340*570mm

Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the physical unit shall be the standard.

The YingTeng explosion-proof air conditioner carries the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This series of products complies with the following standards:

GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000 meters.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) Presence of explosive hazardous areas formed by mixtures of flammable gases, vapors from Group II A, II B, T1 to T4, with air.

The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for 1 and 2 zone flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plants where II A, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof air conditioners are suitable for locations with temperature requirements. The YingTeng explosion-proof air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable construction, and easy installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
