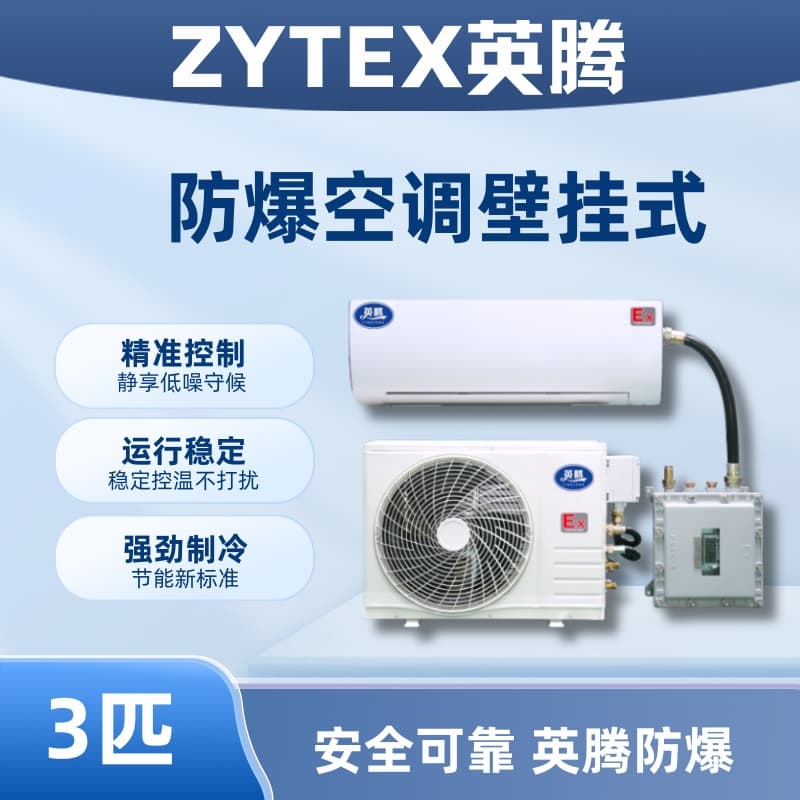

YingTeng Explosion-Proof Wall-Mounted Air Conditioner

(3 Horsepower Wall-Mounted Explosion-Proof Air Conditioner)

Brand: YingTeng

Model: BKF-75-Ex

Feature:冷暖型

Cooling Capacity: 7.5 kW

Heating Output: 9.3 kW

Rated Voltage: 220

Rated Frequency: 50 Hz

Cooling/Heating Power: 2680/4200W

Cooling/Heating Current: 11.8/16.2A

Re-circulating Airflow: 1100 m³/h

Internal/External unit noise: 43/56 dB(A)

Waterproof Rating: IPX4

Indoor Unit/Outdoor Unit Weight: 30kg/53kg

Reference Area: 30-40 sqm

Indoor unit reference dimensions: 1900*340*240mm

Outdoor unit reference dimensions: 1030*430*640mm

Explosion-proof Mark: Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, and the actual unit shall prevail.

The Yiting explosion-proof air conditioner is marked with Ex db ib mb IIB T4 Gb explosion-proof certification.

This series of products complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000 meters.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are hazardous areas with flammable gases, vapors, and air mixtures of Class II A, II B, and T1 to T4 groups, posing explosion risks.

The "YingTeng" explosion-proof air conditioning series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam-air mixtures, and explosion hazards. Explosion-proof air conditioners are suitable for areas with temperature requirements. The YingTeng explosion-proof air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certification and CCC certification. They feature an attractive appearance, reasonable design, and are easy to install and maintain. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
