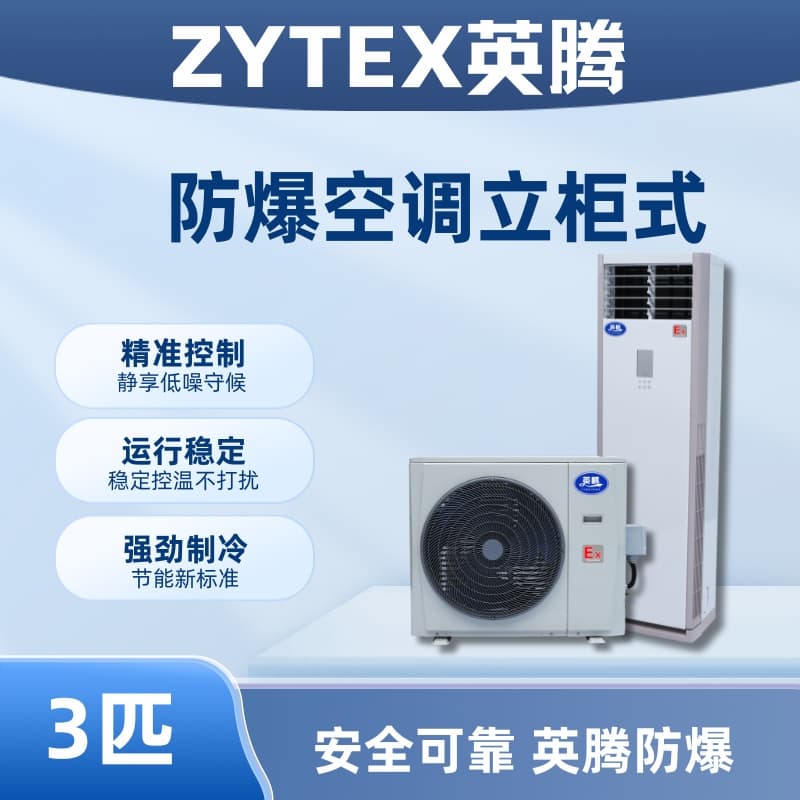

Inten Explosion-proof Wall-Mounted Air Conditioner

(3 Horsepower Vertical Cabinet Explosion-Proof Air Conditioner)

Brand: YingTeng

Model: BKG-75-Ex

Function: Heating and Cooling

Cooling Capacity (W): 7500

Heating Capacity (W): 8300

Rated Voltage: 220/380V

Rated Frequency: 50Hz

Cooling/Heating Rated Current (A): 12.4/19.2

Cooling/Heating Rated Power (W): 2680/4200

Recirculating Airflow: 1200 m³/h

Noise (Interior/Exterior) (dB)(A): 44/56

Climate Type: T1

Electrical Shock Protection Type: I

Quality (Interior/Exterior): 80/100 kg

Reference Usage Area (Room Height: 2.6 meters): 30-35 sqm

Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliance Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

The Yingteng explosion-proof air conditioner features the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This series of products adheres to the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres - Part 9: Equipment protected by "m" type of enclosure"

GB/T 3836.15-2017 "Explosive Atmospheres Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.

The "Yingteng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for 1 and 2 zones with flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, power plants, and other places where there may be II A, II B class T1 to T4 combustible gas, steam, and air mixtures that pose explosion hazards. Explosion-proof air conditioners are suitable for locations with temperature requirements. The Yingteng explosion-proof air conditioners have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, receiving both explosion-proof and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The full series uses brand compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
