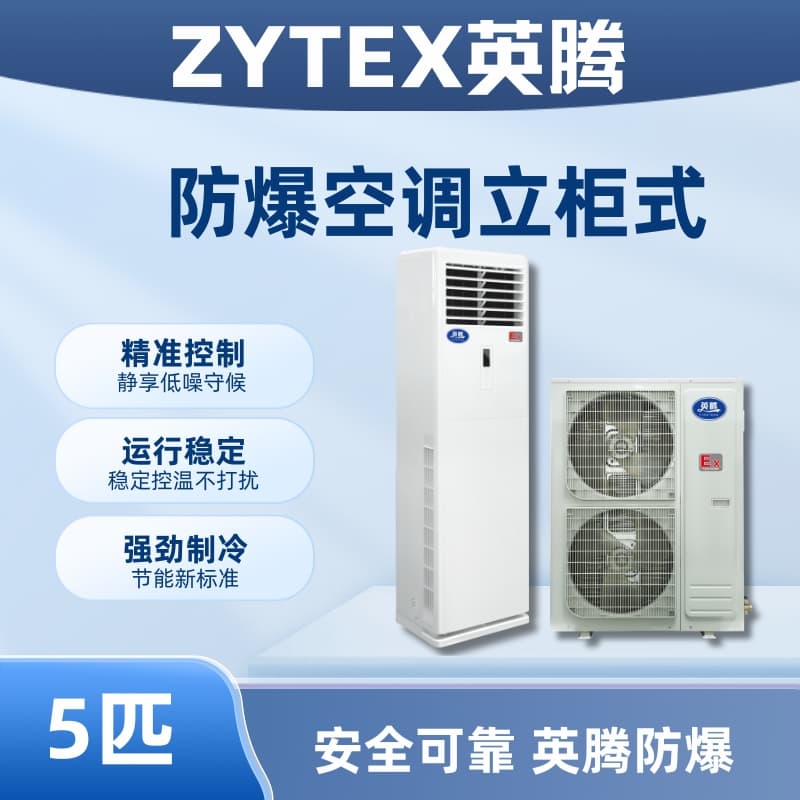

Yiting Explosion-Proof Cabinet-Type Air Conditioner (5HP Cabinet-Type Explosion-Proof Air Conditioner)

Brand: YingTeng

Model: BKG-120-Ex

Feature: Heating and Cooling

Cooling Capacity (W): 12000

Heating Output (W): 13,500

Rated Voltage: 380V

Rated Frequency: 50Hz

Rated Current for Cooling/Heating (A): 8.5/8.8

Cooling/Heating Rated Power (W): 4700/4850

Re-circulating air volume m³/h: 1450

Noise (Indoor/Outdoor) (dB)(A): 50/60

Climate Type: T1

Electrical Shock Protection Type: I

Quality (Interior/Exterior): 80/120 kg

Reference Usage Area (Room Height: 2.6 meters): 50-60 sqm

Explosion-Proof Mark: Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual unit should be taken as the standard.

The Yingteng explosion-proof air conditioner features the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This series of products complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment - General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by intrinsic safety 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are hazardous areas where flammable gases, vapors, and air mixtures from Groups II A, II B, T1 to T4 can form explosive conditions.

The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for use in Class 1 and 2 flammable and explosive environments. It is widely applied in scientific research, oil, chemical, pharmaceutical, and power plant settings where there may be or could be II A, II B, T1-T4 group combustible gases, steam-air mixtures, and explosion hazards. Explosion-proof air conditioners are suitable for areas with temperature requirements. YingTeng's explosion-proof air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
