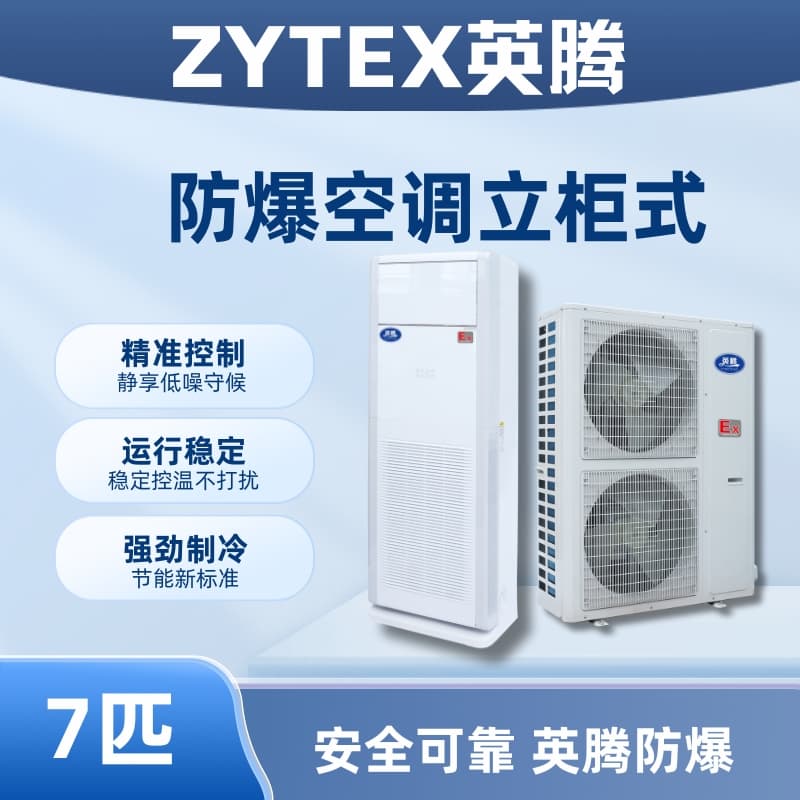

YingTeng Explosion-proof Cabinet-Type Air Conditioner

(7 Horsepower Wall-Mounted Explosion-Proof Air Conditioner)

Brand: Yingten

Model: BKG-160-Ex

Brand: YingTeng

Feature: Heating and Cooling

Cooling Capacity (W): 16,000

Heating Output (W): 17,500

Rated Voltage: 380V

Rated Frequency: 50Hz

Rated Current for Cooling/Heating (A): 8.7/8.9

Cooling/Heating Rated Power (W): 5000/5200

Recirculating air volume m³/h: 1500

Noise (Indoor/Outdoor) (dB)(A): 50/62

Climate Type: T1

Electrical Shock Protection Type: I

Quality (Indoor/Outdoor) (kg): 82/122

Reference Usage Area (Room Height: 2.6 meters): 60-85 sqm

Explosion-proof Mark: Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual product is the standard.

The YingTeng explosion-proof air conditioner features the explosion-proof mark of Ex db ib mb IIB T4 Gb.

This series of products complies with the following standards:

GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000 meters.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.

The "YingTeng" explosion-proof air conditioning series has been specially processed with explosion-proof technology, making it suitable for 1st and 2nd zone flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, power plants, and other locations where II A, IIB, T1 to T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof air conditioners are suitable for areas with temperature requirements. The YingTeng explosion-proof air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certificates and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
