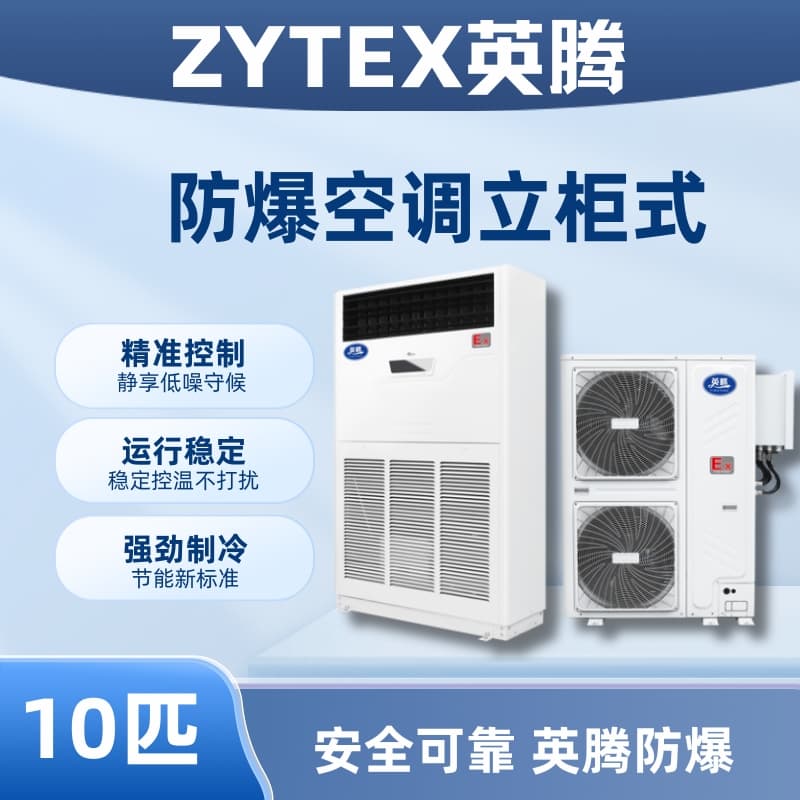

Inten explosion-proof cabinet-type air conditioner

(10 Horsepower Wall-Mounted Explosion-Proof Air Conditioner)

Brand: YingTeng

Model: BKG-280-Ex

Feature: Cool-Warm Type

Cooling capacity: 28 kW

Heating Capacity: 34 kW

Rated Voltage: 380

Rated Frequency: 50 Hz

Cooling/Heating Power: 11,000/15,800 W

Cooling/Heating Current: 18.8/25.9A

Recirculating Airflow: 4500 m³/h

Indoor/Outdoor noise level: 60/62 dB(A)

Waterproof Rating: IPX4

Indoor unit/Outdoor unit weight: 170kg/166kg

Reference Area: 80-120 sqm

Indoor unit reference dimensions: 1900*340*240mm

Outdoor Unit Reference Dimensions: 1030*430*640mm

Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliance Co., Ltd.

Note: The above technical specifications are for reference only; the physical unit shall prevail.

The Yinteng explosion-proof air conditioner carries the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This product series complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are explosion hazard areas formed by mixtures of flammable gases, vapors, and air from groups II A, II B, and T1 to T4.

The "YingTeng" explosion-proof air conditioning series has been specially processed with explosion-proof technology, making it suitable for 1 and 2 zones with flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant settings where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures posing explosion hazards. Explosion-proof air conditioners are ideal for locations with temperature requirements. The YingTeng explosion-proof air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certificates and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
