YitingDuct-type explosion-proof air conditioner

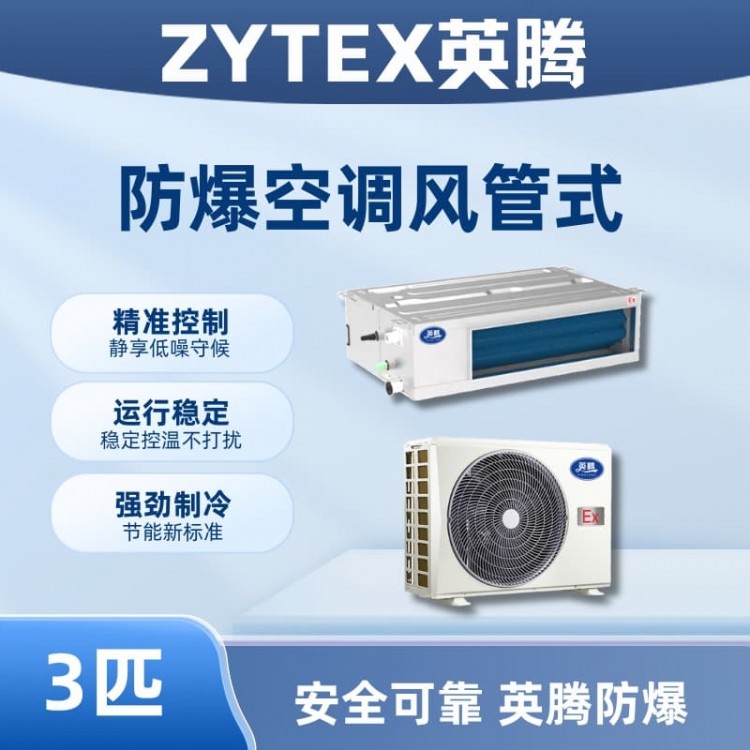

3 horsepower duct-type explosion-proof air conditioner

Model: BKF-75-Ex(F)

Brand: Yingten

Cooling/Heating Capacity (W): 7500/8300

Rated Voltage (V): 220/380

Rated Frequency (Hz): 50

Rated Power (W): 2720

Recirculating Airflow: 1020 m³/h

Net Weight (Indoor/Outdoor): 43/68 kg

Dimensions: 1140mmx450x210

Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only; the actual product should be used as the standard.

The YingTeng explosion-proof air conditioner features the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This series of products complies with the following standards:

GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2 - 2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Group II A, II B, and T1 to T4.

The "Yingteng" explosion-proof air conditioning series models have been processed with special explosion-proof technology and are widely applicable in flammable and explosive areas of Zones 1 and 2. They are suitable for scientific research, oil, chemical, pharmaceutical, and power plant environments where there may be or could be IIa, Iib Group T1 to T4 combustible gases, steam-air mixtures, or explosive hazards. These explosion-proof air conditioners are ideal for spaces with temperature requirements. The Yingteng explosion-proof air conditioners have passed inspection by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and are certified with explosion-proof and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable construction, and easy installation and maintenance. The entire series employs brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
