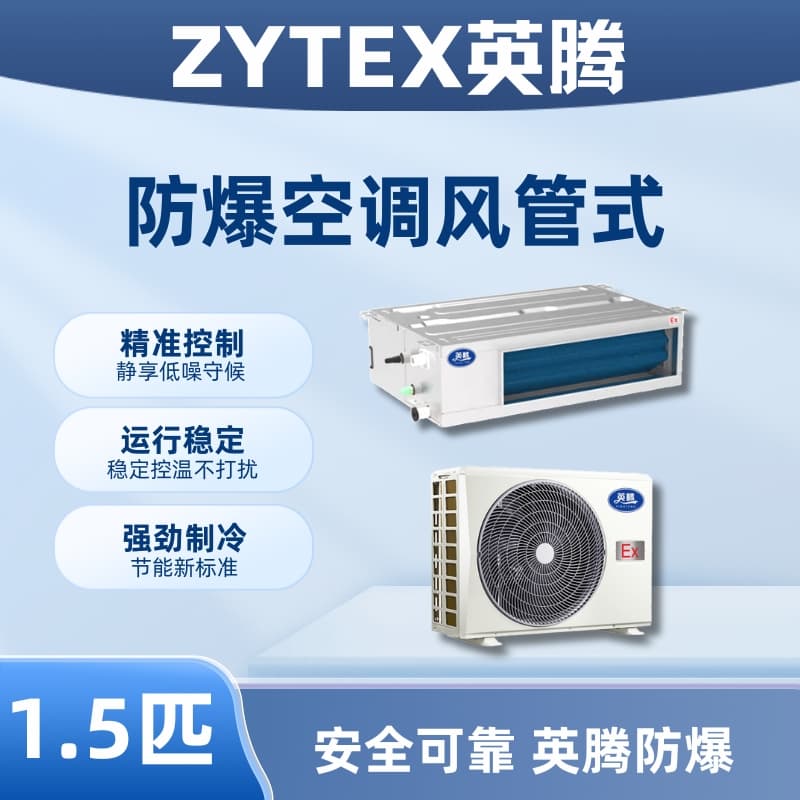

YitingDuct-type explosion-proof air conditioner
Model: BKF-35-Ex(F)
Brand: Yingten
Cooling/Heating Capacity (W): 3500/3800
Rated Voltage (V): 220
Rated Frequency (Hz): 50
Rated Power (W): 1260
Circulating air volume m³/h: 520
Net Weight (Indoor/Outdoor): 28/49 kg
Dimensions: 700 mmx450x210
Ex db ib mb IIB T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
The YingTeng explosion-proof air conditioner features the explosion-proof marking of Ex db ib mb IIB T4 Gb.
This series of products complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety "i""
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
Explosion-proof air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.
c) Presence of explosion hazard areas formed by mixtures of flammable gases, vapors, and air from groups II A, II B, T1 to T4.
The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for widespread use in flammable and explosive areas in Zones 1 and 2. It is ideal for research, oil, chemical, pharmaceutical, and power plant environments where there may be or could be IIa, Iib, T1-T4 groups of combustible gases, steam, and air mixtures posing explosion hazards. Explosion-proof air conditioners are suitable for locations with temperature requirements. YingTeng's explosion-proof air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The full series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
