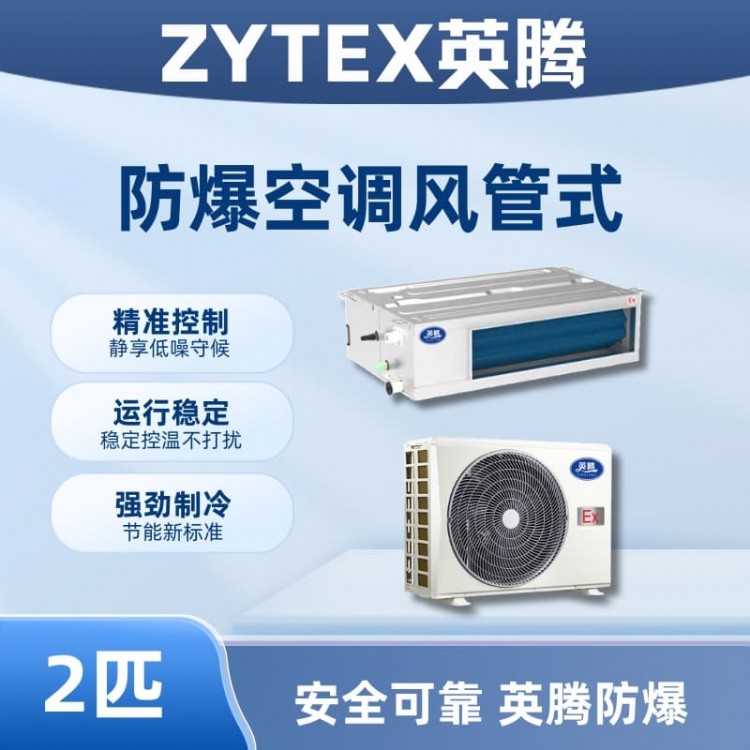

YingTengDuct-type explosion-proof air conditioner

2-horsepower explosion-proof duct air conditioner

Model: BKF-50-Ex(F)

Brand: YingTeng

Cooling/Heating Capacity (W): 5000/5800

Rated Voltage (V): 220

Rated Frequency (Hz): 50

Rated Power (W): 1920

Re-circulating Airflow: 820 m³/h

Net Weight (Indoor/Outdoor): 34/55 kg

Dimensions: 920mmx450x210

Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

The YingTeng explosion-proof air conditioner carries the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This series of products adheres to the following standards:

GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type of enclosure"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors from Groups II(A), II(B), and T1 to T4 with air.

The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof air conditioners are suitable for locations with temperature requirements. The YingTeng explosion-proof air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
