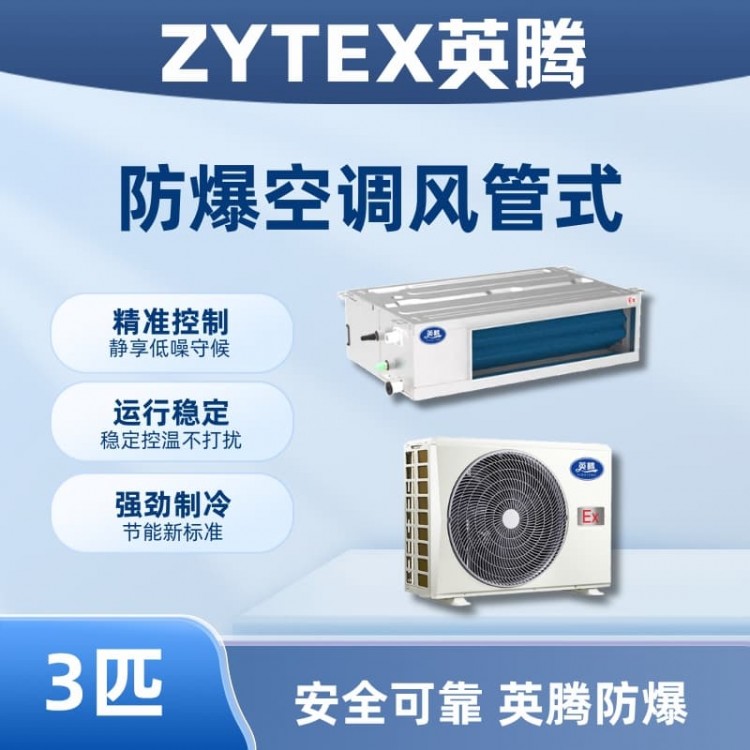

YingTengDuct-type explosion-proof air conditioner

3-horsepower explosion-proof ducted air conditioner

Model: BKF-75-Ex(F)

Brand: YingTeng

Cooling/Heating Capacity (W): 7500/8300

Rated Voltage (V): 220/380

Rated Frequency (Hz): 50

Rated Power (W): 2720

Recirculating Airflow: 1020 m³/h

Net Weight (Indoor/Outdoor): 43/68 kg

Dimensions: 1140 mmx450x210

Explosion-proof marking: Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only; the actual unit shall prevail.

The YingTeng explosion-proof air conditioner carries the explosion-proof mark Ex db ib mb IIB T4 Gb.

This product series complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres - Part 9: Equipment protected by "m" type encapsulation"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) Presence of explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from groups II A, II B, and T1 to T4.

The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology, making it suitable for 1 and 2 zones of flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plants where there may be or could be II A, IIB Group T1 to T4 combustible gases, steam-air mixtures, and explosive hazards. Explosion-proof air conditioners are ideal for environments with temperature requirements. YingTeng explosion-proof air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and been issued with explosion-proof certification and explosion-proof CCC certification. They feature a beautiful appearance, reasonable design, and are easy to install and maintain. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
