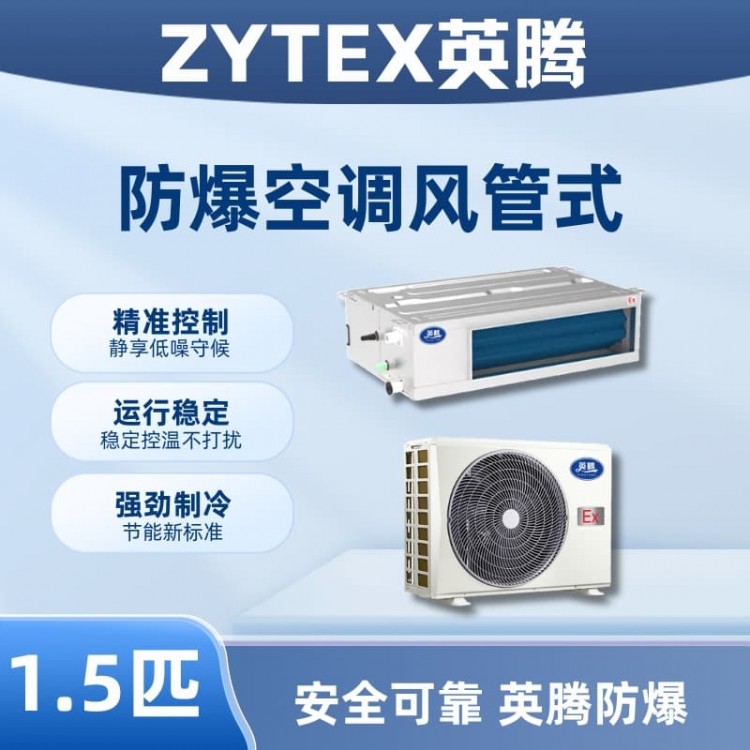

YingTengDuct-type explosion-proof air conditioner

Model: BKF-35-Ex(F)

Brand: YingTeng

Cooling/Heating Capacity (W): 3500/3800

Rated Voltage (V): 220

Rated Frequency (Hz): 50

Rated Power (W): 1260

Recirculating Airflow: 520 m³/h

Net Weight (Indoor/Outdoor): 28/49 kg

Dimensions (mm): 700x450x210

Explosion-proof marking: Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

The YingTeng explosion-proof air conditioner is marked with Ex db ib mb IIB T4 Gb.

This product series complies with the following standards:

GB/T 3836.1-2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres Part 2: Equipment protected by explosion-proof enclosures 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are hazardous areas with flammable gases, vapors, and air mixtures capable of explosion, classified as II A, II B, and T1 to T4 groups.

The "YingTeng" explosion-proof air conditioning series has been processed with special explosion-proof technology and is widely applicable in flammable and explosive areas of Zones 1 and 2. It is suitable for research, oil, chemical, pharmaceutical, power plants, and other places where there may be II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures forming explosive hazards. Explosion-proof air conditioners are suitable for locations with temperature requirements. YingTeng explosion-proof air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Product Quality and issued with explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The full series uses brand compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
