YingTengCeiling-mounted Explosion-proof Air Conditioner

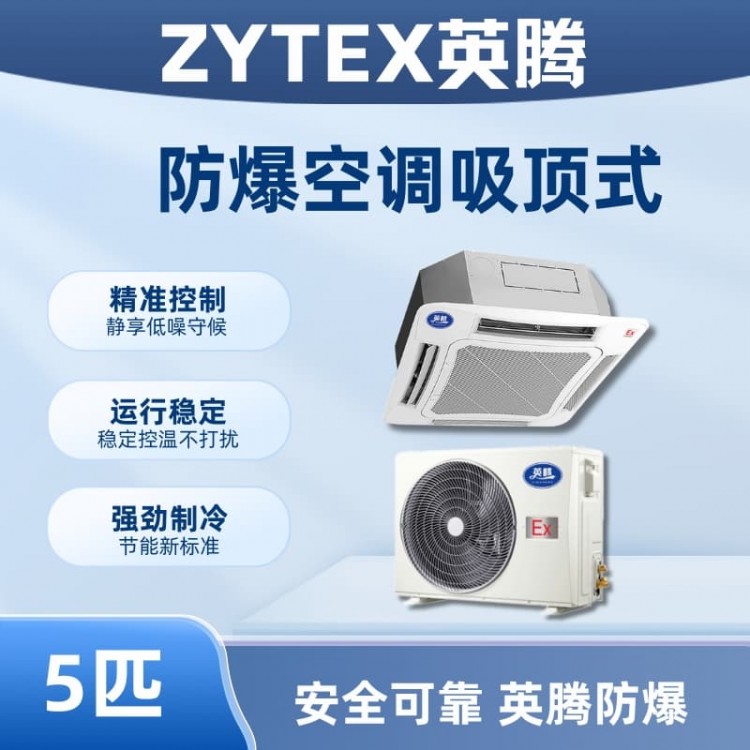

BKG-120-Ex(T)5 Ceiling-Mounted Explosion-Proof Air Conditioner

Model: BKF-120-Ex(T)

Brand: YingTeng

Cooling/Heating Capacity (W): 12,000/13,500

Rated Voltage (V): 380

Rated Frequency (Hz): 50

Rated Cooling/Heating Power (W): 4670/4850

Re-circulating air volume m³/h: 1860

Net Weight (Indoor/Outdoor): 6.5/112 kg

Dimensions (Interior/Exterior) (mm): Motherboard 840840x320 panel 950950x60 Outdoor Unitx1240x412

Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, please refer to the actual product.

The Yiting explosion-proof air conditioner features the explosion-proof mark Ex db ib mb IIB T4 Gb.

This series of products adheres to the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Applicable environmental conditions: temperature -7°C to 43°C, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in Groups II A, II B, and T1 to T4.

The "YingTeng" explosion-proof air conditioning series models have been processed with special explosion-proof technology, making them suitable for use in flammable and explosive areas in Zones 1 and 2. They are widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant settings where II A, IIB, T1 to T4 groups of combustible gases, steam, and air mixtures pose explosion hazards. Explosion-proof air conditioners are ideal for environments with temperature requirements. The YingTeng explosion-proof air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
