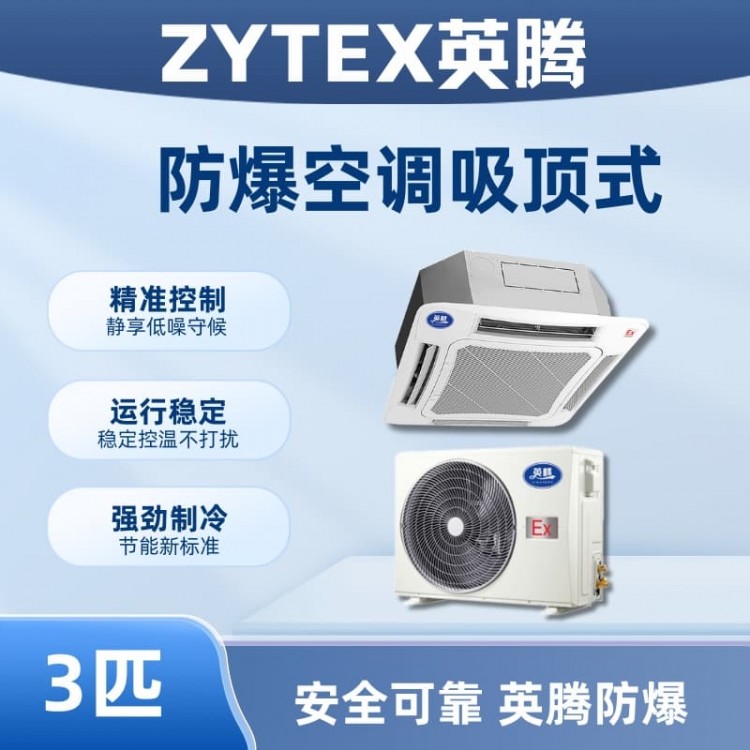

YingTengCeiling-mounted Explosion-proof Air Conditioner

BKG-75-Ex(T) 2 Horsepower Ceiling Mount Explosion-Proof Air Conditioner

Model: BKF-75-Ex(T)

Brand: YingTeng

Cooling/Heating Capacity (W): 7500/8300

Rated Voltage (V): 380

Rated Frequency (Hz): 50

Rated Cooling/Heating Power (W): 2790/4200

Re-circulating Air Volume m³/h: 1180

Net Weight (Indoor/Outdoors): 6.5/75 kg

Dimensions (Interior/Exterior)(mm): Motherboard 840840x240 panel 950950x60 Outdoor Unitx840x412

Explosion-proof Mark: Ex db ib mb IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual unit shall prevail.

The Yingteng explosion-proof air conditioner features the explosion-proof marking of Ex db ib mb IIB T4 Gb.

This product series complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment - General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Explosion-proof air conditioners can operate normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Applicable environmental conditions: Temperature -7°C to 43°C, free of corrosive gases.

c) There are hazardous areas with flammable gases, vapors, and air mixtures forming explosive hazards, classified as II A, II B, and T1 to T4 groups.

The "YingTeng" explosion-proof air conditioning series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where II A, IIB, T1 to T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof air conditioners are suitable for areas with temperature requirements. The YingTeng explosion-proof air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certificates and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
