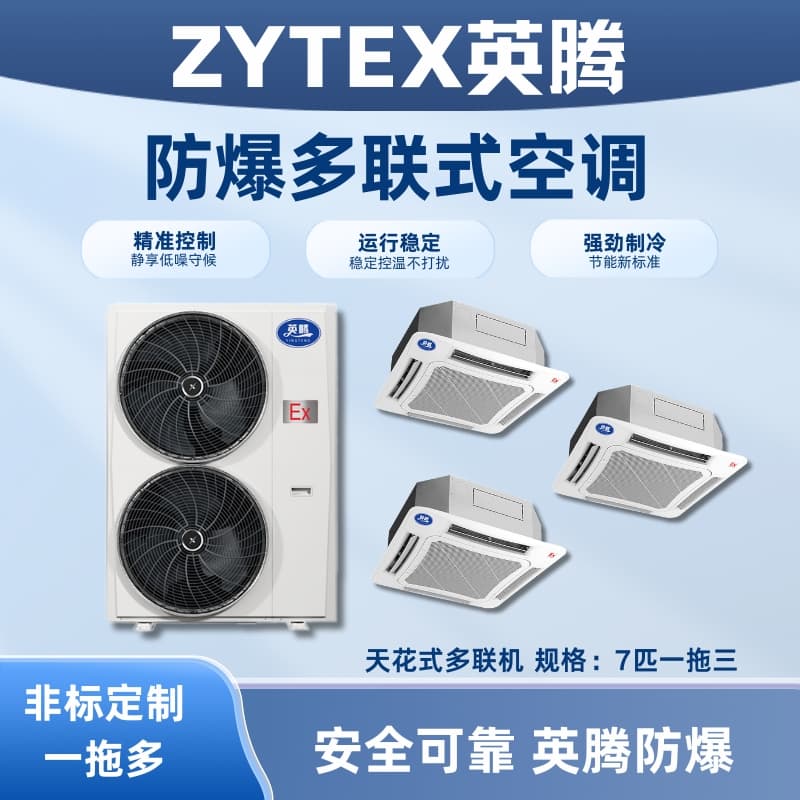

Yinteng Explosion-Proof Multi-split Air Conditioner
BKF-160-Ex(16D)
Product Specifications
Brand: YingTeng
Model: BKF-160-Ex(16D)
Yards: 6 large
Applicable Area: 115-165 sqm
Voltage: 220V, 50Hz
Customized cooling capacity: 16 kW
Customized Heat Output: 18KW
IPLV(C)：6.3
External Machine Noise: 45-58 dB(A)
Dimensions: 900×1328×345mm
Liquid Tube: Φ9.52
Tubing (Main Line <30m): Φ15.88
Tubing (Main Pipe ≥ 30m): Φ19.05
Duct configuration: 1-to-5/6
Ceiling-mounted configuration: 1-to-3/4
Ex db ib mb l IB T4 Gb/ExdbebibmblICT4Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
YitingExplosion-proof multi-split air conditionerExplosion-proof markingExdbibmblIBT4Gb/ExdbebibmblICT4Gb。
Note: The above technical specifications are for reference only; the physical unit shall be the criterion.
The explosion-proof multi-split air conditioning series products comply with the following standards:
GB/T3836.1-2021 "Explosive Atmospheres*1 Part 1: General Requirements for Equipment"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T3836.3-2021 "Explosive Atmospheres*Part 3: Equipment protected by intrinsic safety 'i'"
GB/T3836.4-2021 "Explosive Atmospheres*Part 4: Equipment protected by intrinsic safety 'i'"
GB/T3836.9-2021 "Explosive Atmospheres Part 9: Equipment protected by "m" type encapsulation"
GB/T3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"
YingTengExplosion-proof multi-split air conditionerOperates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air, ranging from II A, II B, to IIC classification, and in groups T1 to T4.
Explosion-proof multi-split air conditioners are a type of central explosion-proof air conditioning units, commonly known as "one-outside-to-many-insides." This refers to a single outdoor unit connected via piping to two or more indoor units, featuring an air-cooled heat exchange on the outdoor side and a direct-evaporation heat exchange on the indoor side. The multi-split system is increasingly widely used in small and medium-sized buildings, as well as certain public buildings.
Compared to traditional central air conditioning systems, multi-split central air conditioning systems feature the following characteristics:
Energy-efficient, with low operating costs.
Flexible control, reliable operation.
Good compatibility with the unit; wide temperature range for cooling and heating.
High design flexibility, easy installation and billing.
Explosion-proof multi-split air conditioners have significant advantages over traditional models: they incorporate a new concept, integrating advanced technologies such as multi-split, intelligent control, health-enhancing, energy-saving, and network control into one unit, meeting consumers' needs for comfort and convenience.
Explosion-proof multi-split air conditioners require less investment compared to multiple explosion-proof units, using just one outdoor unit for easy and aesthetically pleasing installation, and flexible control. They allow for centralized management of all indoor units through network control. An individual indoor unit can be started independently, or multiple units can be activated simultaneously, enhancing flexibility and energy efficiency. The explosion-proof multi-split air conditioners take up minimal space, with just one outdoor unit that can be placed on the roof, featuring a compact, attractive, and space-saving design.
Long pipe runs, high drop. Explosion-proof multi-split air conditioners can be installed with super-long pipe runs up to 125 meters, with indoor units having a drop of up to 50 meters; the drop between two indoor units can reach 30 meters, making the installation of multi-split air conditioners flexible and convenient.
Explosion-proof multi-split air conditioning systems offer a variety of indoor unit specifications and styles for flexible matching. Compared to traditional central air conditioning, they avoid the issue of simultaneous operation and high energy consumption, making them more energy-efficient. Additionally, automated control eliminates the need for a dedicated machine room and dedicated personnel typically required for central air conditioning. Another feature of the explosion-proof multi-split central air conditioning is the intelligent network system, which allows a single outdoor unit to power multiple indoor units. It can also be connected to a computer through its network terminal interface, enabling remote control of the air conditioning system from the computer, fulfilling the modern information society's pursuit of centralized and intelligent control.
Suitable for explosive gas environments in Zone 1 and Zone 2.
2. Suitable for IA, IIB, IIC, and explosion-proof gas environments.
3. Suitable for environments with temperature categories T1 to T4.
4. Suitable for research, oil extraction and refining, chemical industry, battery storage, paint rooms, pharmaceuticals, factories, substation, and warehousing, among other flammable and explosive hazardous areas; ideal for large spaces.
The "YingTeng" explosion-proof multi-split air conditioning series has been specially processed with explosion-proof technology, making it widely applicable in flammable and explosive areas in Zones 1 and 2, such as scientific research, oil, chemical, pharmaceutical, and power plants. It is suitable for locations with or potentially with II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures that pose explosion hazards. The explosion-proof multi-split air conditioners are ideal for environments with temperature requirements. YingTeng's explosion-proof multi-split air conditioners have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, receiving both explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
