Product Specifications

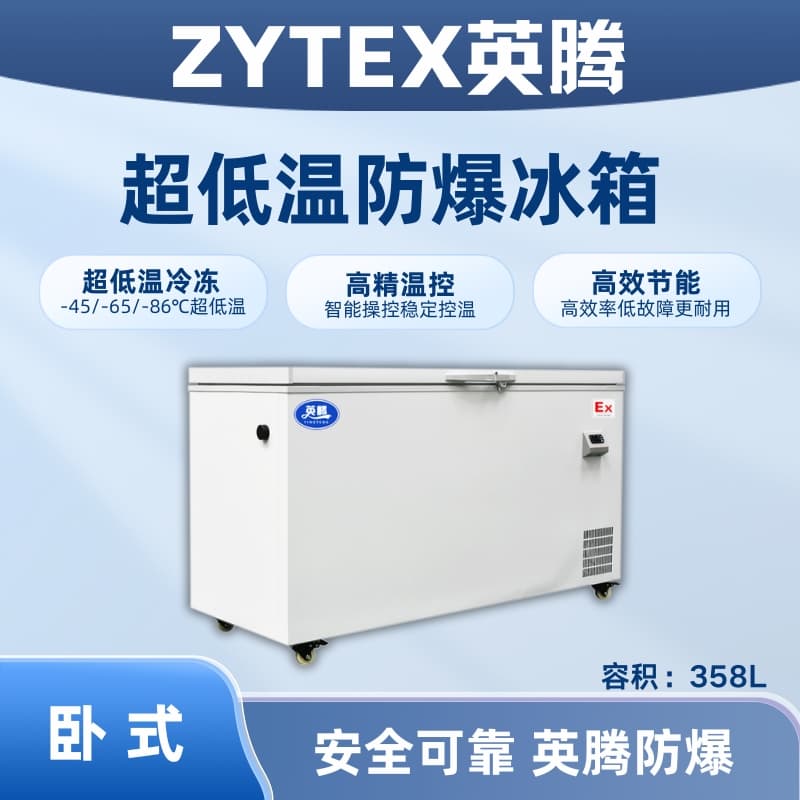

BL-1000 (DW358L) Horizontal Ultra-Low Temperature Explosion-Proof Refrigerator

Model: BL-1000 (DW358L)

Brand: YingTeng

Dimensions (mm) (Width x Depth x Height): 1810 x 895 x 1090

Internal dimensions (mm) (width × depth × height): 1080×500×660

Temperature (℃): -45/-65/-86/-105/-135

Power (W): 500~820

Net Weight (kg): 180

Volume (L): 358

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, please refer to the physical unit for accuracy.

Explosion-proof Refrigerator Types: Available in single-door upright freezer-refrigerator, double-door upright freezer-refrigerator, left-right door upright freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, and 86°C ultra-low temperature explosion-proof refrigerator, among other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with both explosion-proof and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These refrigerators are highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the following standards:

Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres, Part 2: Equipment with 'd' Explosion Protection Type"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "i" Protection"

GB3836.9-2021 *Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with "m" Type of Encapsulation Protection

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"

YingTeng Explosion-Proof Refrigerator Product Features

Insulated glass design, excellent thermal insulation, efficient anti-fogging, and superior display effects.

Extra-thick foam layer with insulating properties, high-efficiency thick precision thermal insulation, enhanced thermal retention.

Design with swivel casters, easy and agile movement;

Branded compressors, featuring high-efficiency cooling, low noise, low power consumption, and stable performance; adjustable shelves with customizable layer heights for easier storage.

220V/110V, your choice.

Precision Computer Temperature Control System: Equipped with a precise temperature sensor inside the cabinet to maintain stable internal temperature; intelligent control fan forced air circulation system to ensure uniform internal temperature.

Automatic Temperature Control: High-brightness digital display, temperature adjustable within the range of 2°C to 8°C, with an accuracy of 0.1°C. Utilizes non-fluorine environmentally friendly refrigerant, internationally renowned high-efficiency compressor, energy-saving and noiseless.

Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.

Optional sound and light alarm system: Equipped with high-temperature, low-temperature, and sensor failure alarms, ensuring safer storage of items; door lock included to prevent unauthorized access.

Inten Explosion-proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, and other places. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, II C, with a temperature group of T4 explosive gas mixtures. The BL series of industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured in accordance with industrial environmental usage requirements, featuring integrated explosion-proof technology.
