Product Specifications

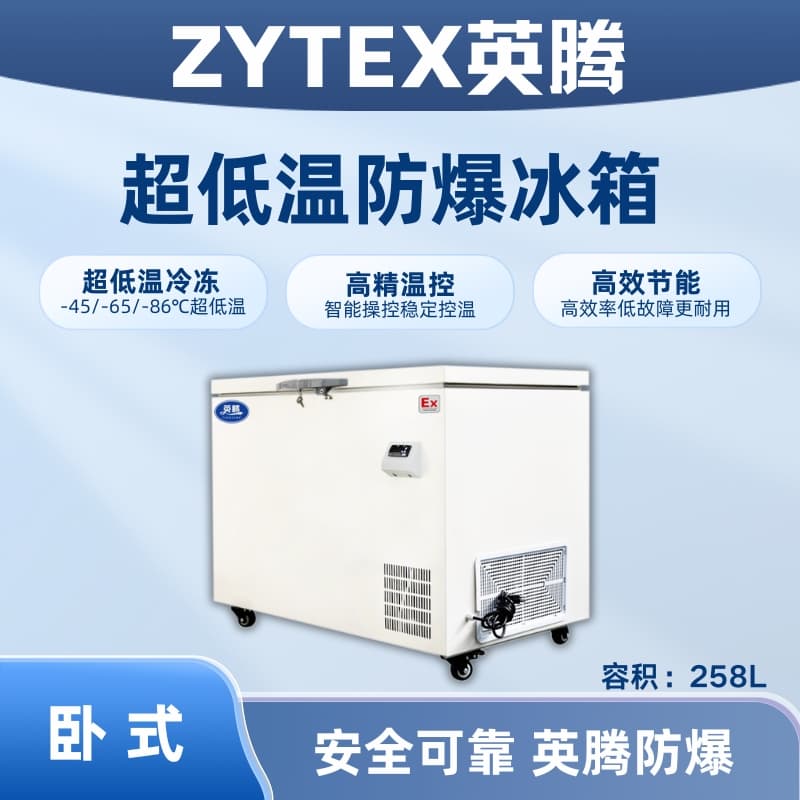

BL-1000 (DW258LX) Horizontal Ultra-Low Temperature Explosion-Proof Refrigerator
Model: BL-1000 (DW258LX)
Brand: YingTeng
Dimensions (mm) (Width x Depth x Height): 1510 x 895 x 1090
Internal Dimensions (mm) (Width x Depth x Height): 780 x 500 x 660
Temperature (℃): -45/-65/-86/-105/-135
Power (W): 420~800
Net Weight (kg): 162
Volume (L): 258
Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit is the definitive standard.
Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall prevail.
Explosion-proof Refrigerator Types: Available in single-door vertical freezing and refrigeration, double-door vertical freezing and refrigeration, left-right door vertical freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature double-door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas of Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1-T4 groups of combustible gases or steam-air mixtures may form explosive hazards. These explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certificates and explosion-proof CCC certificates. They feature an attractive appearance, reasonable design, ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These refrigerators are highly favored in the market.
YingTeng explosion-proof refrigerator conforms to the execution standard
Explosion-proof Execution Standards: The explosion-proof refrigerator has been inspected by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Explosion Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment for Protection by Intrinsic Safety"
GB3836.9-2021 *Electrical Equipment for Explosive Gas Atmospheres - Part 9: "m" Type Encapsulation for Equipment
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Yinteng Explosion-Proof Refrigerator Product Features
Insulated glass design, excellent thermal performance, effective anti-fogging, and superior display effects.
Thick foam layer, heat-insulating properties, highly efficient thick insulation layer, enhanced thermal insulation effect.
Swivel wheel design, easy and light movement.
Branded compressors, high-efficiency cooling, low noise, low power consumption, stable performance; ◎ Adjustable shelves, adjustable layer heights for convenient storage.
220V/110V available upon your choice.
Precision Computerized Temperature Control System: Equipped with a precise temperature sensor inside the cabinet to maintain stable internal temperature; an intelligent fan-assisted forced air circulation system ensures uniform internal temperature.
Automatic Temperature Control: High-brightness digital display, temperature setting from 2°C to 8°C, display accuracy 0.1°C. Uses environmentally friendly refrigerant without CFCs, internationally renowned high-efficiency compressor, energy-saving and quiet.
High-efficiency air-cooled condenser, finned evaporator, rapid refrigeration.
Optional sound and light alarm system: Equipped with high-temperature, low-temperature, and sensor failure alerts, ensuring safer storage of items; door is locked to prevent unauthorized access.
Inten Explosion-Proof Refrigerator Application Range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of explosive gas mixtures with II A, II B, II C classification and temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of the IC classification, manufactured according to industrial environmental usage requirements.
