Product Specifications

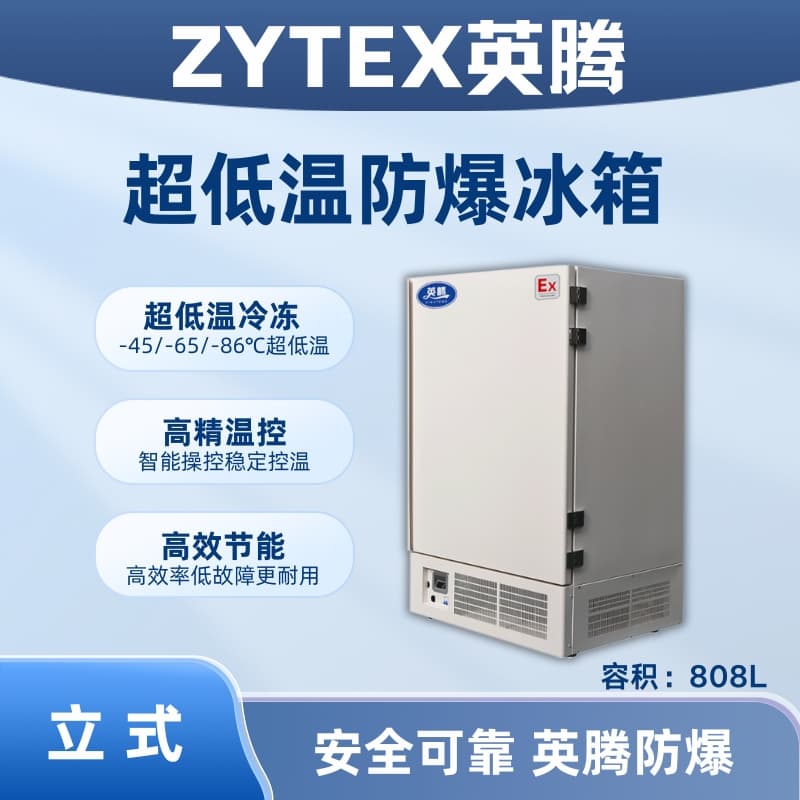

BL-1200(DL808L) Vertical Ultra-Low Temperature Explosion-Proof Refrigerator
Model: BL-1200(DL808L)
Brand: Yingten
Dimensions (W×D×H mm): 1090×1010×2025
Internal dimensions (WxDxH mm): 850×735×1335
Temperature (℃): -25/-45/-65/-86
Power (W): 850~950
Net Weight (kg): 300
Volume (L): 808
Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
Explosion-proof Refrigerator Types: Available in single-door upright freezing/refrigeration, double-door upright freezing/refrigeration, left-right door upright freezing/refrigeration, horizontal freezing/refrigeration, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator/freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "Yingteng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for 1st and 2nd zone flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant settings where II A, IIB, T1-T4 groups of combustible gases and steam-air mixtures may form explosive hazards. These explosion-proof refrigerators are ideal for locations with temperature requirements. The Yingteng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market.
YingTeng explosion-proof refrigerator conforms to the execution standard
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with "d" Intrinsic Safety Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment with "Intrinsic Safety" Protection"
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with "m" Type of Encapsulation Protection"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Inten Explosion Proof Refrigerator Product Features
Insulated glass design, excellent thermal performance, effective anti-fogging, and excellent display effect.
Extra-thick foam layer, heat-insulating properties; highly efficient and thick precision thermal insulation, enhanced insulation effect.
Swivel wheel design, easy and lightweight to move.
Branded compressor, high-efficient cooling, low noise, energy-saving, and stable performance; ◎ Adjustable shelves, with customizable layer heights for easier storage;
220V/110V available for your choice.
Precision Computer Temperature Control System: Equipped with a precision temperature sensor inside the cabinet to maintain stable internal temperature; an intelligent fan forced air circulation system to ensure uniform temperature distribution throughout the cabinet.
Automatic Temperature Control: High-brightness digital display, temperature adjustable within the range of 2°C to 8°C with 0.1°C precision; uses environmentally friendly non-fluorine refrigerant, high-efficiency international brand compressor, energy-saving and quiet operation.
High-efficiency air-cooled condenser, finned evaporator, rapid refrigeration.
Optional sound and light alarm system: Features high temperature, low temperature, sensor failure, and other sound and light alarm functions for enhanced security of stored items; equipped with a lock on the door to prevent unauthorized access.
YingTeng explosion-proof refrigerator application range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within Zones 0 or 1 of Class II A, II B, or II C, for explosive gas mixtures of temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are designed with integrated explosion-proof technology, manufactured to meet industrial environmental usage requirements as IC-class explosion-proof refrigerators.
