Product Specifications

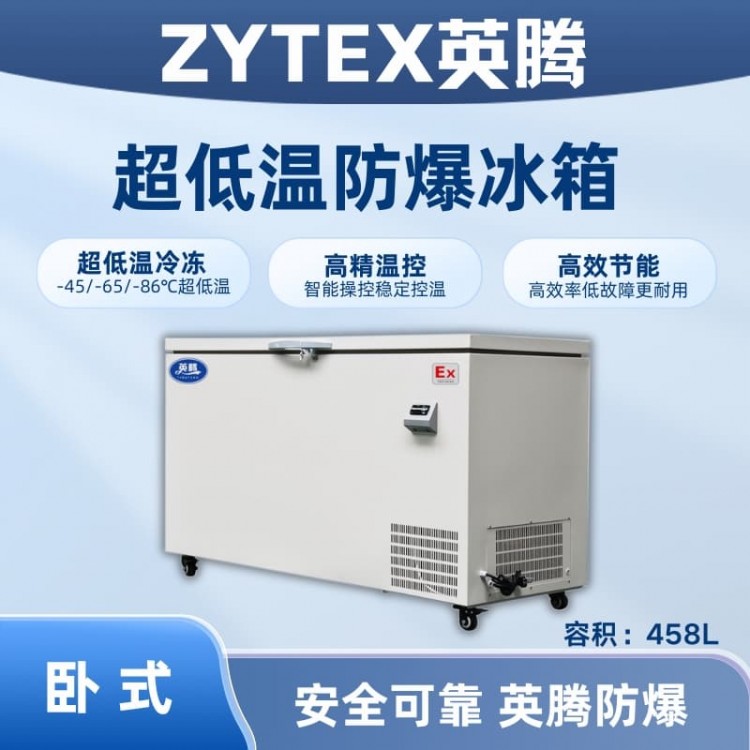

BL-1000 (DW458L) Horizontal Ultra-Low Temperature Explosion-Proof Refrigerator

Model: BL-1000 (DW458L)

Brand: YingTeng

Dimensions (mm) (Width x Depth x Height): 2115 x 895 x 1090

Interior Dimensions (mm) (Width x Depth x Height): 1380 x 500 x 660

Temperature (°C): -45/-65/-86/-105/-135

Power (W): 520~900

Net Weight (kg): 207

Volume (L): 458

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the physical unit shall prevail.

Explosion-proof Refrigerator Types: Available in single-door vertical freezer-refrigerator, double-door vertical freezer-refrigerator, left-right hinged vertical freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature double-door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1-T4 groups of combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety, making them highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 *1 Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with "d" Intrinsic Safety Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""

GB3836.9-2021 *Electrical Equipment for Explosive Gas Atmospheres – Part 9: "m" Type Encapsulation Equipment*

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"

Inten Explosion-Proof Refrigerator Product Features

Insulated glass design, excellent thermal performance, efficient fog prevention, and impressive display effects.

Thick foam layer, heat-insulating properties, highly efficient thick precision thermal insulation, enhanced insulation effect.

Swivel wheel design, easy and lightweight movement.

Branded compressors, offering high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelves, with customizable layer heights for convenient storage.

220V/110V, your choice.

Precision Computer Temperature Control System: Equipped with a precise temperature sensor inside the chamber to maintain stable internal temperature; an intelligent fan forced air circulation system ensures uniform internal temperature.

Automatic Temperature Control: High-brightness digital display, temperature setting within the range of 2°C to 8°C, with a display accuracy of 0.1°C. Utilizes non-fluorine environmentally friendly refrigerant, internationally renowned high-efficiency compressor, energy-saving and noiseless.

High-efficiency air-cooled condenser, finned evaporator, rapid refrigeration.

Optional audio-visual alarm system: Equipped with high-temperature alarm, low-temperature alarm, sensor failure alarms, etc., ensuring safer storage of items; door fitted with a lock to prevent unauthorized opening.

YingTeng explosion-proof refrigerator application scope

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, II C, temperature group T4 explosive gas mixtures. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of Class IC, manufactured in accordance with industrial environmental usage requirements and integrated explosion-proof technology.
