Product Specifications

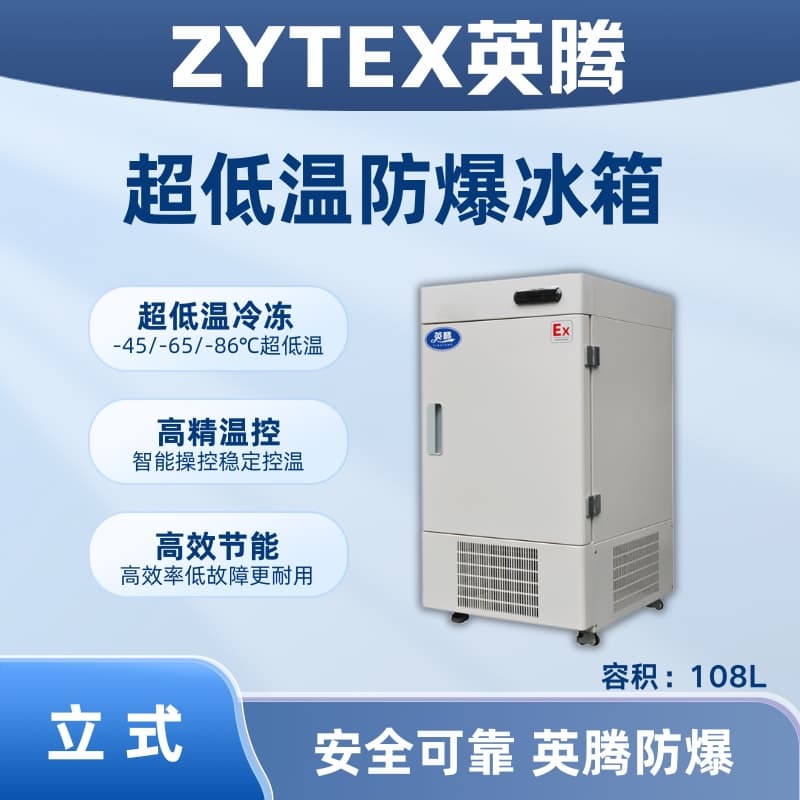

BL-1200(DL108L) Vertical Ultra-Low Temperature Explosion-Proof Refrigerator

Model: BL-1200(DL108L)

Brand: YingTeng

Dimensions (W×D×H mm): 700×730×1260

Internal dimensions (W×D×H mm): 460×460×510

Temperature (℃): -25/-45/-65/-86

Power (W): 300~480

Net Weight (kg): 107

Volume (L): 108

Ex db ib mb II CT 4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical parameters are for reference only, and the actual unit should be taken as the standard.

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual unit is the standard.

Explosion-proof Refrigerator Types: Available in single door vertical freezer-refrigerator, double door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single door glass refrigerator, single door glass cool cabinet, double door glass refrigerator, double door glass cool cabinet, triple door glass refrigerator, triple door glass cool cabinet, stainless steel double door refrigerator-freezer, double door dual temperature explosion-proof refrigerator, dual door dual temperature explosion-proof refrigerator, single door single temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, and 86°C ultra-low temperature explosion-proof refrigerator, among other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These refrigerators are highly favored in the market.

Inten explosion-proof refrigerator conforms to standard

Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB3836.2-2021 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with "d" Protection Type

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" Protection"

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Equipment with 'm' Type of Encapsulation"

GB3836.15-2017 *15th Part: Design, Selection, and Installation of Electrical Equipment for Explosive Gas Atmospheres

YingTeng Explosion-Proof Refrigerator Product Features

Insulated glass design, excellent thermal performance, effective anti-fogging, and excellent display effect.

Thick foam layer with heat-insulating properties, high-efficiency thick precision insulation, enhanced thermal insulation effect.

Swivel wheel design, easy and light movement.

Branded compressors, high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelves, with customizable layer heights for easier storage of items.

220V/110V available for your choice.

Precision computer temperature control system: Equipped with an internal precision temperature sensor to maintain stable internal temperature; an intelligent control fan forced air circulation system to ensure uniform internal temperature.

Automatic Temperature Control: High-brightness digital display, set temperature within the range of 2°C to 8°C, with display accuracy of 0.1°C. Uses non-fluorine environmentally friendly refrigerant, internationally renowned high-efficiency compressor, energy-saving and quiet.

Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.

Optional sound and light alarm system: Equipped with high-temperature and low-temperature alarms, sensor failure alerts, and more, ensuring safer storage of items; door with lock to prevent unauthorized opening.

Inten Explosion-Proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas in zones 0 or 1 of Class II A, II B, or II C, temperature group T4 explosive gas mixtures. The BL series industrial-grade explosion-proof refrigerators/freezers/refrigerator-freezers are explosion-proof refrigerators of Class IC, manufactured in accordance with industrial environmental usage requirements and integrated explosion-proof technology.
