Product Specifications

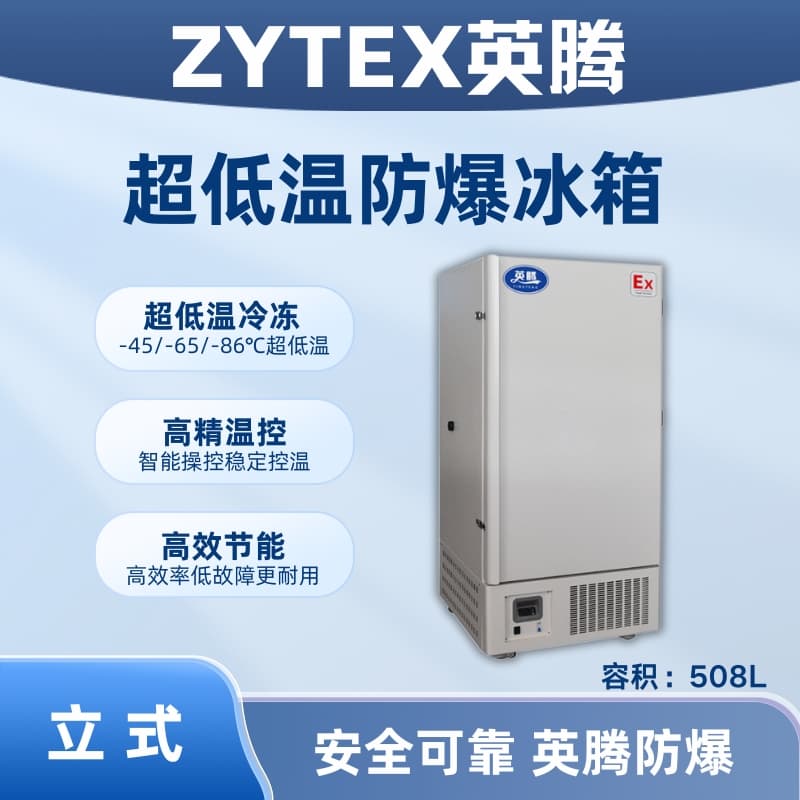

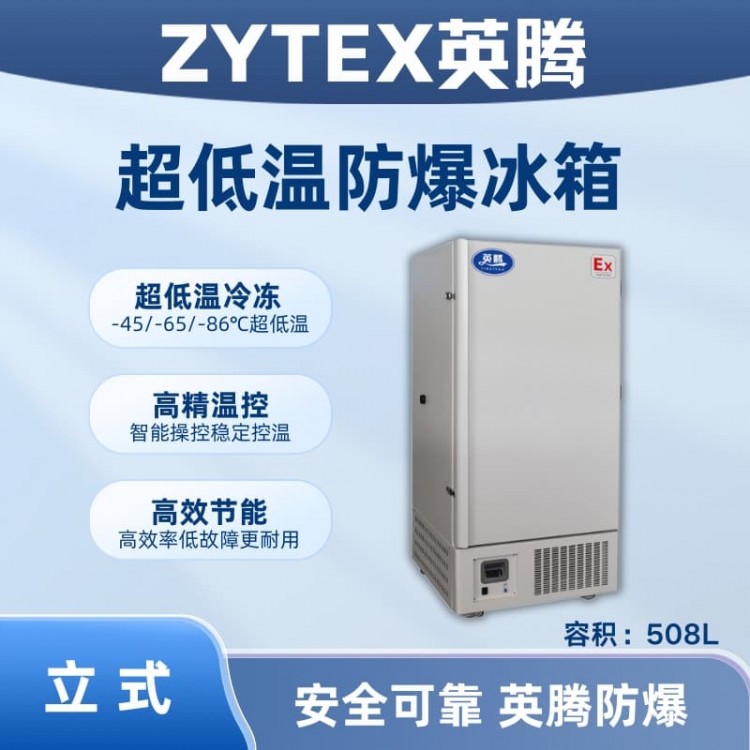

BL-1200(DL508L) Vertical Ultra-Low Temperature Explosion-Proof Refrigerator
Model: BL-1200(DL508L)
Brand: YingTeng
Dimensions (W×D×H mm): 870×1030×1975
Interior dimensions (W x D x H mm): 570 x 710 x 1225
Temperature (°C): -25/-45/-65/-86
Power (W): 800~880
Net Weight (kg): 255
Volume (L): 508
Ex db IIC T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Explosion-proof Refrigerator Types: Available in single-door upright freezing and refrigeration, double-door upright freezing and refrigeration, left-right door upright freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in research, oil, chemical, pharmaceutical, and power plant environments where II A, II B, T1-T4 groups of combustible gases or steam-air mixtures may form explosive hazards. These explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety, making them highly favored in the market.
Yinteng explosion-proof refrigerators comply with the execution standard
Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Protection Type"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 4: Equipment Protected by Intrinsic Safety"
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Encapsulation Type 'm' Protected Equipment"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Yinteng Explosion-Proof Refrigerator Product Features
Insulated glass design, excellent thermal insulation, efficient anti-fogging, and excellent display effects.
Extra-thick foam layer with heat-insulating properties, high-efficiency thick precise thermal insulation, enhanced thermal retention.
Design with swivel wheels, easy and convenient movement;
Branded compressors, high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelves, with customizable layer heights for convenient storage.
220V/110V available for your choice.
Precision Computer Temperature Control System: Equipped with a precision temperature sensor inside the enclosure to maintain stable internal temperature; intelligent fan control system for forced air circulation to ensure uniform internal temperature.
Automatic Temperature Control: High-brightness digital display, temperature adjustable within 2°C~8°C, with 0.1°C display accuracy. Utilizes environmentally friendly non-fluorine refrigerant, international brand high-efficiency compressor, energy-saving and quiet operation.
Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.
Optional sound and light alarm system: Features high-temperature, low-temperature, and sensor failure alarms, ensuring safer storage; equipped with a lock on the door to prevent unauthorized access.
Inten Explosion-Proof Refrigerator Application Range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, or II C, temperature group T4 explosive gas mixtures. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured to meet industrial environmental usage requirements with an IC classification.
