Product Specifications

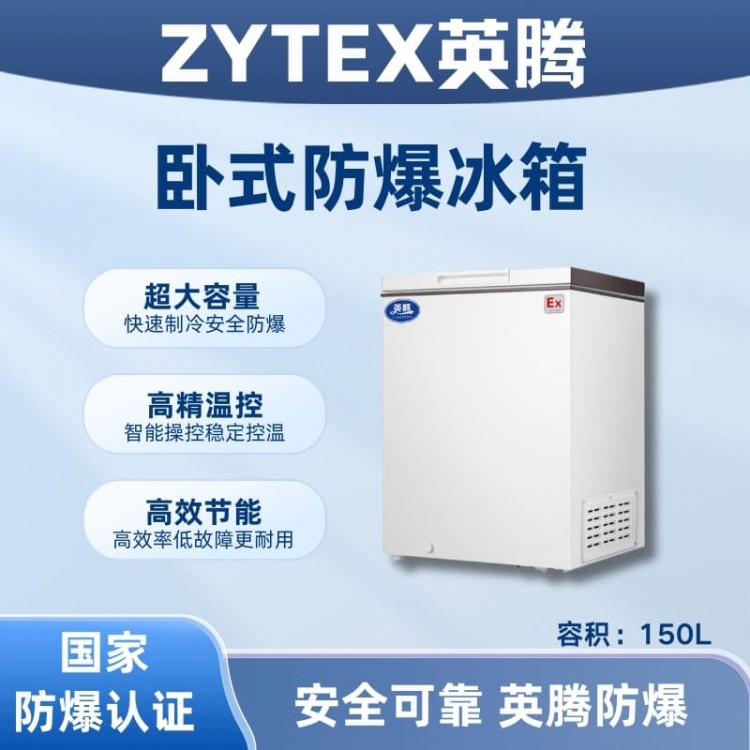

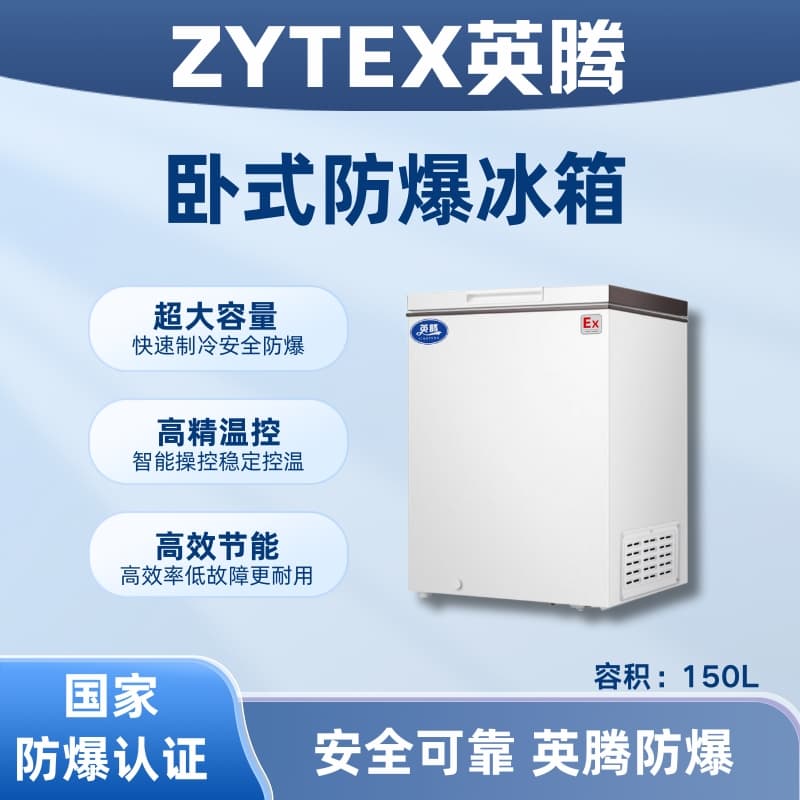

BL-450 (WS150L) Explosion-proof Horizontal Refrigerator

Model: BL-450(WS150L)

Brand: YingTeng

Effective Volume: 150L

Power: 85W

Net Weight: 38 kg

Power Consumption: 0.64 Kwh/24h

Dimensions (Width x Depth x Height mm): 775 x 610 x 855

Operating Temperature: 0°C ≤ T ≤ 10°C or -18°C ≤ T ≤ 0°C

Note: Single-temperature room roof door, built-in cargo basket

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual unit is the standard.

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the physical unit is the definitive standard.

Explosion-proof Refrigerator Types: Available in single-door upright freezing and refrigeration, double-door upright freezing and refrigeration, left-right door upright freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature double-door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, and power plants where IIa, Iib, T1-T4 groups of combustible gases, steam, and air mixtures pose explosion hazards. Explosion-proof refrigerators are ideal for environments with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, receiving both explosion-proof and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The full series uses brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety, making them highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 2: Equipment with "d" Type of Explosion Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""

GB3836.9-2021 *Electrical Equipment for Explosive Gas Atmospheres - Part 9: "m" Type of Encapsulation Protection Equipment

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Design, Selection, and Installation of Electrical Installations"

Yinteng Explosion-Proof Refrigerator Product Features

High-capacity refrigeration-freezing conversion: full freezing, full refrigeration switch mode, two modes in one space.

Thickened Foam Box: The entire box is thickened, providing denser foam for longer cold retention.

Utilizing brand compressors: quick refrigeration, low energy consumption, and minimal noise.

Interior embossed aluminum plate: Securely sealed with clamping joint technology, the corrosion-resistant plate is durable and long-lasting.

Mechanical temperature controller: The higher the gear, the lower the temperature, and the mechanical temperature controller is less prone to damage, resulting in a longer lifespan.

Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking, peace of mind with Wu'an quality

Energy-saving and power-saving; low power consumption optimization, from startup frequency, cooling temperature, standby, to heat preservation – every level is meticulously optimized to achieve low energy consumption and rational resource utilization.

YingTeng explosion-proof refrigerator application range

Explosion-proof refrigerators are widely used in: oil, chemical, pharmaceutical, aerospace, laboratory, storage and other places. They are suitable for hazardous areas in zones 0 or 1 of explosion-proof gas mixtures with II A, II B, II C classification and temperature group T4. The BL series industrial-grade explosion-proof refrigerator/freezer/combined refrigerator is an IC-grade explosion-proof refrigerator manufactured in accordance with industrial environmental usage requirements and integrated explosion-proof technology.
