Product Specifications

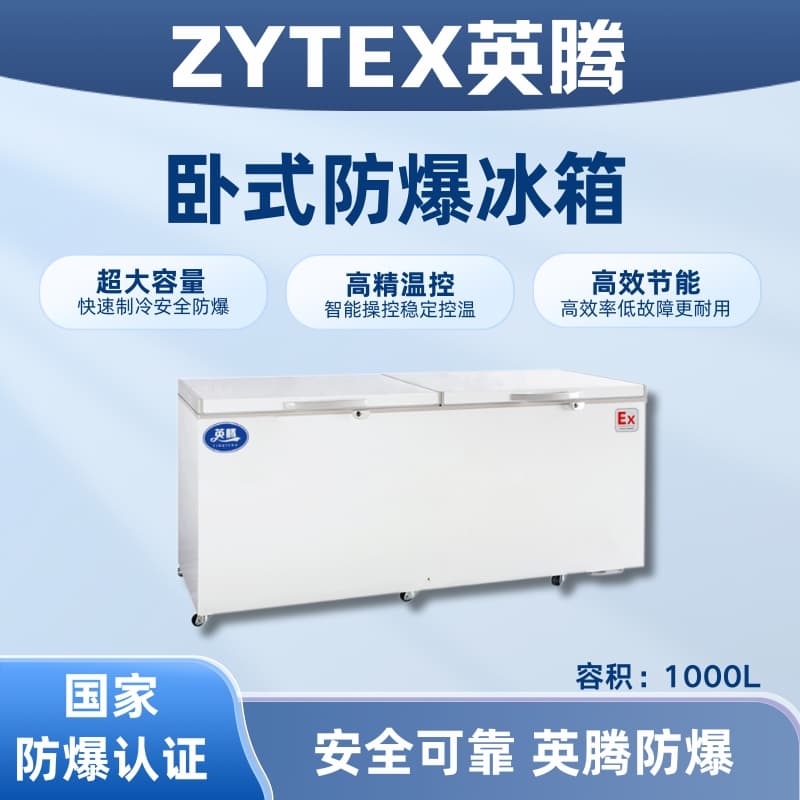

BL-450(WS1000L) Explosion-Proof Horizontal Refrigerator

Model: BL-450 (WS1000L)

Brand: YingTeng

Effective Volume: 1000L

Power: 462W

Net Weight: 125 kg

Power Consumption: 2.67 Kwh/24h

Dimensions (Width x Depth x Height, mm): 2305 x 930 x 945

Operating Temperature: 0°C ≤ T ≤ 10°C or -18°C ≤ T ≤ 0°C

Note: Horizontal refrigerator, convertible to refrigeration and freezing, single compartment

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, please refer to the actual machine.

Explosion-proof Refrigerator Types: Available in single door vertical freezer-refrigerator, double door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single door glass refrigerator, single door cool cabinet, double door glass refrigerator, double door cool cabinet, triple door glass refrigerator, triple door cool cabinet, stainless steel double door refrigerator-freezer, double door dual temperature explosion-proof refrigerator, dual door dual temperature explosion-proof refrigerator, single door single temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "Yingteng" explosion-proof refrigerator series models have been processed with special explosion-proof technology and are suitable for use in flammable and explosive areas such as Zone 1 and 2. They are widely used in scientific research, oil, chemical, power plants, and other places where IIa, Iib Group T1 to T4 combustible gases, steam, and air mixtures pose explosion hazards. Explosion-proof refrigerators are suitable for environments with temperature requirements. The Yingteng explosion-proof refrigerators have been inspected and certified by the National Explosion-proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and explosion-proof CCC certificates. They feature a beautiful appearance, reasonable design, and are easy to install and maintain. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Intrinsic Safety Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Encapsulation 'm' Protected Equipment"

GB3836.15-2017 *15th Part: Design, Selection, and Installation of Electrical Equipment for Explosive Gas Atmospheres

Inten Explosion-Proof Refrigerator Product Features

High-Capacity Refrigerator-Freezer Conversion: Switch between full freezing and full refrigeration modes within one compartment.

Thickened Foam Box Body: The entire box is thickened, resulting in denser foam for better cold retention.

Brand compressor used: Quick refrigeration, low energy consumption, minimal noise.

Engraved aluminum plate with inner flange: Sealed with inner locking joint technology, the corrosion-resistant aluminum plate is durable and long-lasting.

Mechanical temperature controller: The higher the gear, the lower the temperature; the mechanical temperature controller is less prone to damage and has a longer lifespan.

Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking, worry-free operation.

Energy-saving and power-efficient; low power consumption optimization, from startup frequency, cooling temperature, standby, to insulation, every level is optimized to achieve low energy consumption and rational resource utilization.

Inten Explosion Proof Refrigerator - Applicable Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, or II C, for explosive gas mixtures with temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are designed with integrated explosion-proof technology, manufactured to meet industrial environmental usage requirements as IC-grade explosion-proof refrigerators.
