Product Specifications

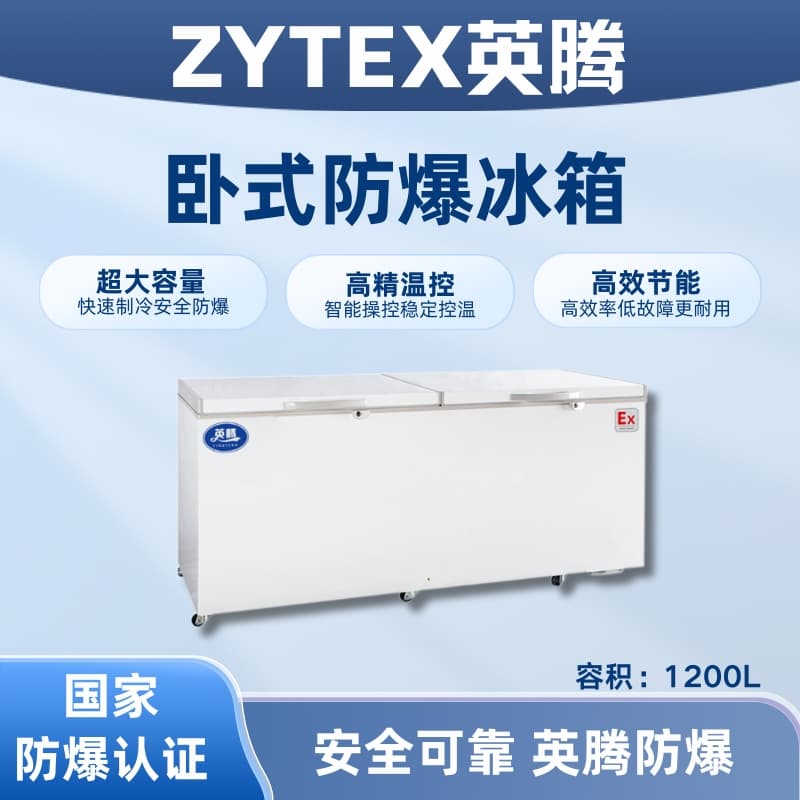

BL-450(WS1200L) Horizontal Explosion-Proof Refrigerator
Model: BL-450(WS1200L)
Brand: Yingten
Effective Volume: 1200L
Power: 518W
Net Weight: 135 kg
Power Consumption: 3.13 Kwh/24h
Dimensions (Width x Depth x Height mm): 2575 x 930 x 945
Operating Temperature: 0°C ≤ T ≤ 10°C or -18°C ≤ T ≤ 0°C
Note: Horizontal refrigerator, convertible between freezing and refrigeration, single compartment
Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical parameters are for reference only; the actual physical unit shall prevail.
Explosion-proof Refrigerator Types: Available in single-door vertical freezing and refrigeration, double-door vertical freezing and refrigeration, left-right door vertical freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature swing door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, and 86°C ultra-low temperature explosion-proof refrigerator, among others. Custom production according to customer requirements is also available.
The "Yingteng" explosion-proof refrigerator series has been specially processed with explosion-proof technology, suitable for widespread use in Class 1 and Class 2 flammable and explosive areas. It is widely applicable in scientific research, oil, chemical, power plants, and other places where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam-air mixtures, and explosion hazards. Explosion-proof refrigerators are suitable for locations with temperature requirements. Yingteng explosion-proof refrigerators have passed inspection by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products and have been issued explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series employs brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These refrigerators are highly favored by the market.
Yinteng explosion-proof refrigerator meets the execution standards
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres, Part 2: Equipment with 'd' Type of Intrinsic Safety"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Equipment with "m" Type of Encapsulation Protection"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Inten Explosion-Proof Refrigerator Product Features
High-capacity refrigeration-freezing conversion: full-freezing, full-refrigeration switching mode, two modes in one space.
Thickened Foam Box Body: The entire box is thickened for denser foam, locking in cold for a longer duration.
Utilizing brand-name compressors: quick refrigeration, low energy consumption, and minimal noise.
Anodized aluminum plate with embossed interior: Sealed tightly with interior扣joint technology, corrosion-resistant, durable and long-lasting.
Mechanical temperature controller: The higher the gear, the lower the temperature; the mechanical temperature controller is less prone to damage and has a longer lifespan.
Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking, worry-free with Wu'an.
Energy-saving and power-saving; low power consumption optimization, from startup times, cooling temperature, standby, to insulation, layer-by-layer optimization, achieving low energy consumption and reasonable resource utilization.
Yinteng Explosion-proof Refrigerator - Application Range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within Zones 0 or 1 of Class II A, II B, II C, and T4 explosive gas mixtures. The BL series of industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured with integrated explosion-proof technology, designed to meet the requirements of industrial environments.
