Product Specifications

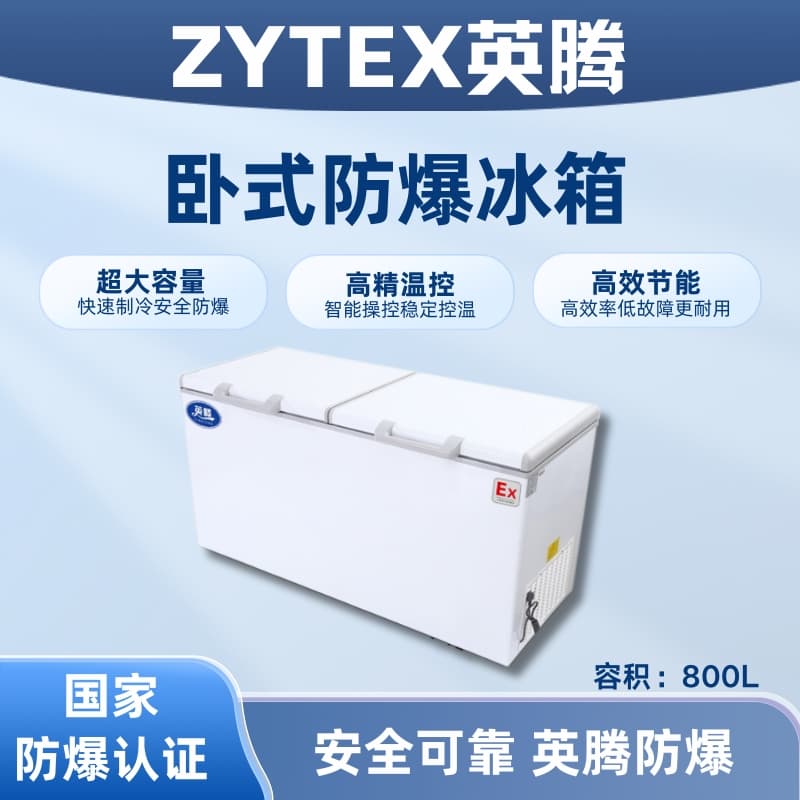

BL-450(WS800L) Horizontal Explosion-Proof Refrigerator

Model: BL-450(WS800L)

Brand: YingTeng

Effective Volume: 800L

Power: 398W

Net Weight: 105 kg

Power Consumption: 2.24 Kwh/24h

Dimensions (Width x Depth x Height mm): 2215 x 780 x 945

Operating Temperature: 0°C ≤ T ≤ 10°C or -18°C ≤ T ≤ 0°C

Notes: Single temperature single door refrigerator, double top lid freezer, built-in shelves

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the physical unit is the definitive standard.

Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

Explosion-proof Refrigerators Types: Available in single door vertical freezer-refrigerator, double door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single door glass refrigerator, single door glass cooler, double door glass refrigerator, double door glass cooler, triple door glass refrigerator, triple door glass cooler, stainless steel double door refrigerator-freezer, double door dual temperature explosion-proof refrigerator, dual door double temperature explosion-proof refrigerator, single door single temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, and power plant environments where II A, II B, T1 to T4 groups of combustible gases or steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These advantages have made them highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Intrinsic Safety Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment for Protection by Intrinsic Safety"

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulation 'm' Protected Equipment"

GB3836.15-2017 *15th Part: Design, Selection, and Installation of Electrical Equipment for Explosive Gas Atmospheres

YingTeng Explosion-Proof Refrigerator Product Features

High-capacity refrigeration-freezing conversion: full-freezing, full-refrigeration switch mode, two modes in one space.

Thickened Foam Box: The box is thickened throughout, with a denser foam that locks in cold for a longer duration.

Utilizing branded compressors: fast refrigeration, low energy consumption, and minimal noise.

Interior embossed aluminum plate: Sealed with tight interior扣splicing technology, the aluminum plate is corrosion-resistant and durable.

Mechanical temperature controller: The higher the gear, the lower the temperature; the mechanical temperature controller is less prone to damage and has a longer lifespan.

Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking, worry-free operation with Wu'an assurance.

Energy-saving and electricity-saving; optimized low power consumption, from the number of startup, cooling temperature, standby, insulation, to every level of optimization, achieving low energy consumption and reasonable resource utilization.

Inten Explosion-Proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of explosive gas mixtures with II A, II B, II C classification and temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of the IC classification, manufactured in accordance with industrial environmental usage requirements.
