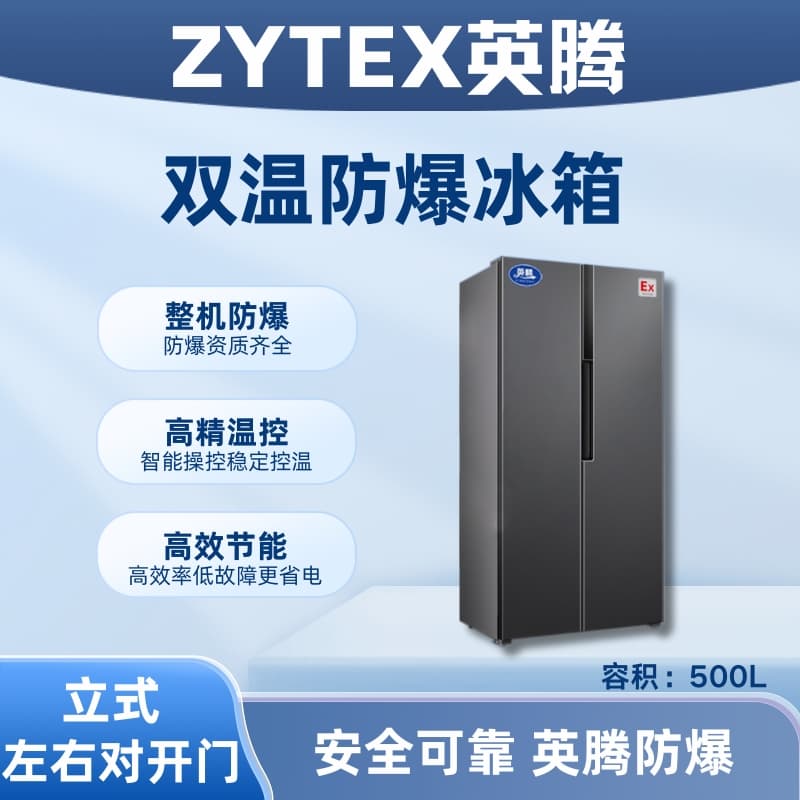

Product Specifications
Brand: YingTeng
Model: BL-200(LS500L)
Total Capacity: 500L
Refrigerator Capacity: 310L
Refrigerator Capacity: 190L
Touchscreen operation
Double Door Category
Freezing Capacity (kg/12h): 8
Refrigeration Temperature: 2℃~8℃
Freezing temperature: -15℃ to -25℃
Compressor Type: Dual变频
Noise Level B(A): 38
Rated Voltage/Frequency: 220V/50Hz
Power Consumption: 0.97
Dimensions: 910*646*1786mm
Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliance Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall prevail.
Explosion-proof Refrigerator Types: Available in single-door vertical freezer-refrigerator, double-door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door cool cabinet, double-door glass refrigerator, double-door cool cabinet, triple-door glass refrigerator, triple-door cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applied in research, oil, chemical, pharmaceutical, and power plant environments where II A, II B, T1-T4 groups of combustible gases or steam-air mixtures may pose explosion hazards. These explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have passed inspections by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products and have been issued explosion-proof certification and CCC certification. They feature an attractive appearance, reasonable design, ease of installation and maintenance. The entire series utilizes renowned compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliability, making them highly favored by the market.
YingTeng explosion-proof refrigerator conforms to the following standards:
Explosion-proof Execution Standards: The explosion-proof refrigerator has been inspected by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres*2nd Part: Equipment with 'd' Type of Explosion-Proof Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment with Intrinsic Safety 'i' Protection"
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with 'm' Type of Encapsulation Protection"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Inten Explosion Proof Refrigerator Product Features
Insulated glass design, excellent thermal performance, effective anti-fogging, and great display effect.
Extra-thick foam layer, heat-insulating, high-efficiency thick precision thermal insulation, enhanced thermal insulation effect.
Swivel wheel design for easy and light movement.
Branded compressors, high-efficiency cooling, low noise, low power consumption, stable performance; ◎Adjustable shelves, adjustable layer heights for convenient storage;
Choose from 220V or 110V.
High-precision computerized temperature control system: features an internal precise temperature sensor to maintain stable internal temperature; intelligent fan control for forced cold air circulation system to ensure uniform temperature distribution inside the chamber.
Automatic Temperature Control: High-brightness digital display, temperature setting within the range of 2°C to 8°C, with 0.1°C precision display. Uses non-fluorine environmentally friendly refrigerant, international brand high-efficiency compressor, energy-saving and quiet operation.
Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.
Optional sound and light alarm system: Features high-temperature, low-temperature, and sensor failure alarms, ensuring safer storage of items; equipped with a lock on the door to prevent unauthorized access.
Inten Explosion-Proof Refrigerator Application Range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas in zones 0 or 1 of explosive gas mixtures classified as IIA, IIB, IC, with temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are designed with integrated explosion-proof technology, manufactured to meet the requirements of industrial environments as IC-grade explosion-proof refrigerators.
