Product Specifications

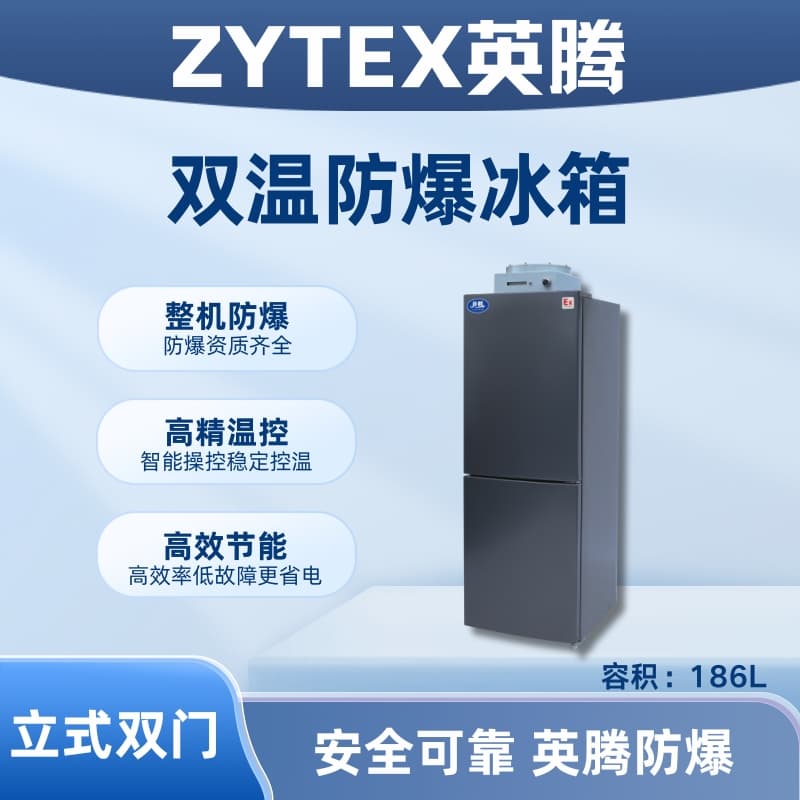

BL-200 (LS186L) Vertical Double Door Dual Temperature Explosion-Proof Refrigerator

Model: BL-200(LS186L)

Brand: YingTeng

Product Type: Double Door, Dual Temperature

Power: 220V/50Hz

Power: 98kW

Noise: ≤41dB(A)

Power Consumption: 0.82 Kwh/24h

Electrical Shock Protection Type: I

Total Effective Volume: 186L

Refrigerator Capacity: 112L

Refrigerator Capacity: 76L

Freezing Capacity: 5kg/24h

Dimensions: 500×602×1490mm

Operating Temperature: 0°C ≤ t ≤ 10°C or -30°C ≤ t ≤ -15°C

Explosion-proof symbol: Ex db IIC T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual product is to be taken as the standard.

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, the physical unit is the standard.

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, the actual machine is to be considered.

Explosion-proof Refrigerator Types: Available in single-door upright freezer-refrigerator, double-door upright freezer-refrigerator, left-right door upright freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cooler, double-door glass refrigerator, double-door glass cooler, triple-door glass refrigerator, triple-door glass cooler, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been specially processed with explosion-proof technology, suitable for use in flammable and explosive areas of Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where II A, II B, T1 to T4 groups of combustible gases, vapors, and air mixtures pose explosion hazards. These explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety, making them highly favored in the market.

YingTeng explosion-proof refrigerator complies with the standard

Explosion-proof Execution Standards: The explosion-proof refrigerator has been inspected by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Intrinsic Safety Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "i" Protection"

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Equipment with 'm' Type of Encapsulation"

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"

Inten Explosion Proof Refrigerator Product Features

Thickened Foam Box: The entire box is thickened, resulting in denser foam and longer-lasting cooling.

Utilizing branded compressors: fast refrigeration, low energy consumption, and minimal noise.

Engraved interior aluminum sheet: Sealed with internal interlocking technology, the corrosion-resistant and durable aluminum sheet is long-lasting.

Balanced Pivot Hinge: Effortless door opening and closing, with multiple pivot hinges for balanced braking, convenience, and flexibility.

Energy-saving and Power-saving: Low power consumption optimization, from startup frequency, cooling temperature, standby, insulation, layer-by-layer optimization, energy-saving and environmentally friendly.

YingTeng explosion-proof refrigerator application range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within Zones 0 or 1 of II A, II B, II C classification, T4 temperature groups of explosive gas mixtures. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured to IC classification, utilizing integrated explosion-proof technology and meeting industrial environmental usage requirements.
