Product Specifications

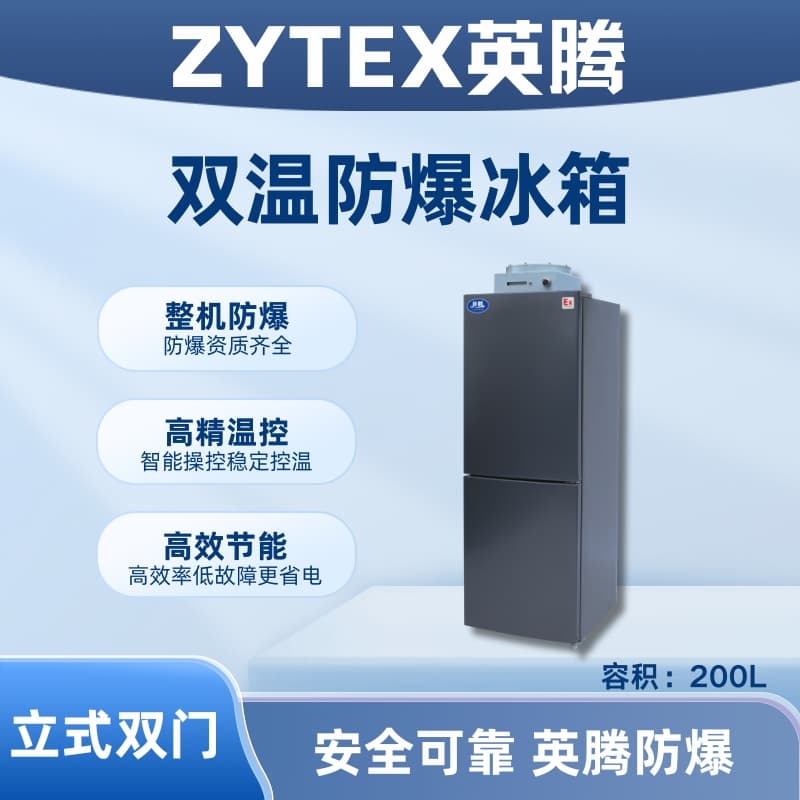

BL-200 (LS200L) Vertical Double Door Dual Temperature Explosion-Proof Refrigerator

Model: BL-200 (LS200L)

Brand: Yingten

Product Type: Double Door Dual Temperature

Power: 220V/50Hz

Power: 100 kW

Noise: ≤41dB(A)

Power Consumption: 0.82 Kwh/24h

Electrical Shock Protection Type: I

Total Effective Volume: 200L

Refrigerator Capacity: 129L

Refrigerator Capacity: 80L

Freezing capacity: 5kg/24h

Dimensions: 500×602×1400mm

Operating Temperature: 0°C ≤ t ≤ 10°C or -30°C ≤ t ≤ -15°C

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, the actual product should be used as the standard.

Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, the physical unit shall prevail.

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

Explosion-proof Refrigerators: Available in single-door vertical freezing and refrigeration, double-door vertical freezing and refrigeration, left-right opening vertical freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerators, single-door glass coolers, double-door glass refrigerators, double-door glass coolers, triple-door glass refrigerators, triple-door glass coolers, stainless steel double-door refrigerators and freezers, double-door dual-temperature explosion-proof refrigerators, dual-temperature French door explosion-proof refrigerators, single-door single-temperature explosion-proof refrigerators, multi-temperature multi-door explosion-proof refrigerators, glass door refrigerators, horizontal explosion-proof refrigerators, horizontal dual-temperature explosion-proof refrigerators, stainless steel explosion-proof refrigerators, ultra-low temperature explosion-proof refrigerators, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "Yingteng" explosion-proof refrigerator series has been processed with special explosion-proof technology, suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The Yingteng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Explosion Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulation 'm' protected equipment"

GB3836.15-2017 *15 Part: Design, Selection, and Installation of Electrical Equipment for Explosive Gas Atmospheres

Yinteng explosion-proof refrigerator product features

Thickened Foam Box: The entire box is thickened, providing denser foaming and longer-lasting refrigeration.

Utilizing branded compressors: Fast cooling, low energy consumption, and minimal noise.

Engraved inner wall aluminum sheet: Sealed with inner扣splicing technology, the corrosion-resistant aluminum sheet is durable and long-lasting.

Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking for convenience and flexibility.

Energy-saving and Power-saving: Low power consumption optimization, from startup frequency, cooling temperature, standby, insulation, layer-by-layer optimization, energy conservation and environmental protection.

Inten Explosion-Proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical and petrochemical industries, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas in Zones 0 or 1 of Class II A, II B, or II C explosive gas mixtures with a temperature group of T4. The BL series of industrial-grade explosion-proof refrigerators/freezers/refrigerating storage cabinets are designed with integrated explosion-proof technology and manufactured to meet industrial environmental usage requirements as Class II C explosion-proof refrigerators.
