Product Specifications

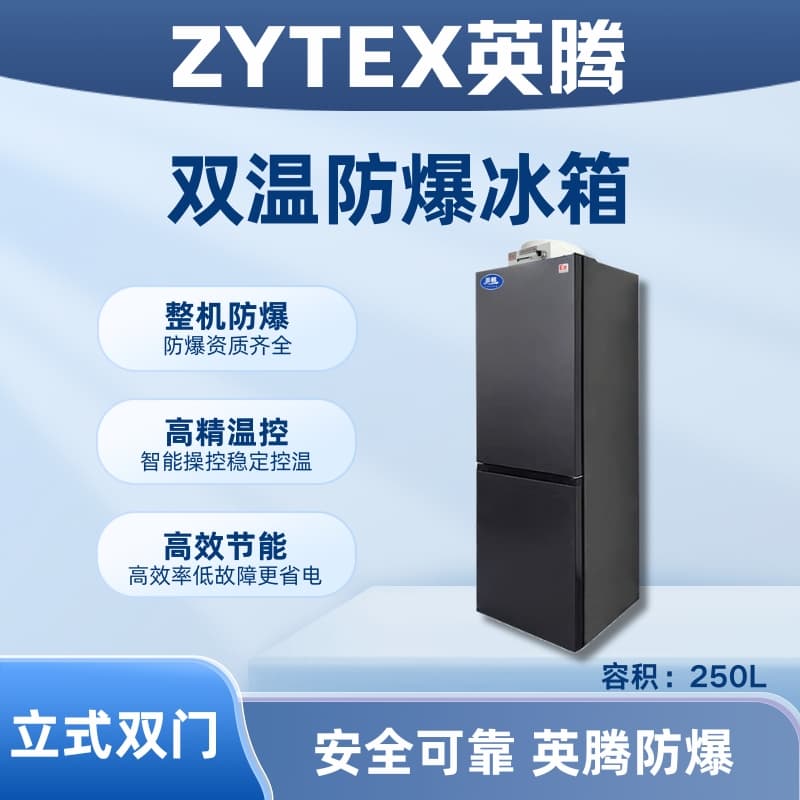

BL-200 (LS250L) Vertical Double Door Dual Temperature Explosion-Proof Refrigerator
Model: BL-200(LS250L)
Brand: YingTeng
Product Type: Double Door Dual Temperature
Power Supply: 220V/50Hz
Power: 110 kW
Noise: ≤41dB(A)
Power Consumption: 0.75 Kwh/24h
Electrical Shock Protection Type: I
Total Effective Volume: 240L
Refrigerator Capacity: 178L
Refrigerator Capacity: 62L
Freezing Capacity: 5kg/24h
Dimensions: 525×602×1460mm
Operating Temperature: 0°C ≤ t ≤ 10°C or -30°C ≤ t ≤ -15°C
Ex db IIB T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the actual unit should be used as the standard.
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
Explosion-proof Refrigerator Types: Available in single-door vertical freezer-refrigerator, double-door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature double-door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, and 86°C ultra-low temperature explosion-proof refrigerator, among others. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB level T1 to T4 combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are suitable for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certificate. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety, making them highly favored in the market.
Inten explosion-proof refrigerator complies with the following standards:
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 2: Equipment with 'd' Type of Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulation-type "m" protected equipment"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Design, Selection, and Installation of Electrical Installations"
YingTeng Explosion-proof Refrigerator Product Features
Thickened Foam Box: The entire box is thickened, with denser foam for longer cooling.
Utilizing branded compressors: Fast refrigeration, low energy consumption, and minimal noise.
Interior embossed aluminum sheet: Sealed with interior interlocking technology, the tight aluminum sheet is corrosion-resistant and durable.
Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking for convenience and flexibility.
Energy-saving and power-saving: Low power consumption optimization, from startup frequency, cooling temperature, standby, insulation, multi-level optimization, energy conservation and environmental protection.
YingTeng explosion-proof refrigerator application scope
Explosion-proof refrigerators are widely used in: petrochemical, chemical, pharmaceutical, aerospace, laboratory, storage, and other places. They are suitable for hazardous areas within the Zone 0 or 1 of explosion-proof gas mixtures classified as II A, II B, and II C with a temperature group of T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured according to industrial environmental usage requirements, utilizing integrated explosion-proof technology.
