Product Specifications

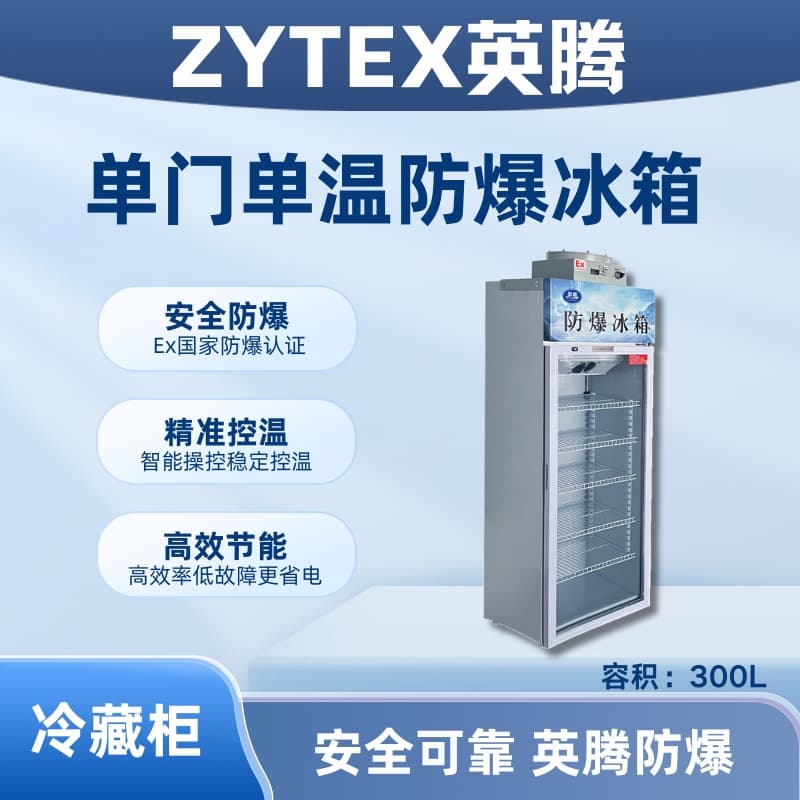

BL-900 (BL300L) Single Door Single Temperature Explosion-Proof Refrigerator
Model: BL-900 (BL300L)
Brand: YingTeng
Door Type: Single Door, Single Temperature
Total Effective Volume: 300L
Rated Voltage: AC 220V
Rated Frequency: 50Hz
Rated Power: 170W
Temperature Range: 0 ≤ T ≤ 10°C
Rated power consumption: 1.04 kWh/24h
Noise: 40 dB(A)
Freezing Capacity: 8kg/24h
Electrical Shock Protection Type: I
Dimensions: 610×550×2000mm
Interior dimensions: 530×410×1280mm
Explosion-proof markings: Ex db ib IIC T4 Gb. Explosion-proof refrigerator types: Available in single door vertical freezer-refrigerator, double door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single door glass refrigerator, single door glass cool cabinet, double door glass refrigerator, double door glass cool cabinet, triple door glass refrigerator, triple door glass cool cabinet, stainless steel double door refrigerator-freezer, double door dual temperature explosion-proof refrigerator, single door single temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology and is widely applicable in flammable and explosive areas of Zones 1 and 2. It is suitable for research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may pose explosion hazards. Explosion-proof refrigerators are suitable for locations with temperature requirements. The YingTeng explosion-proof refrigerators have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued with explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliability, making them highly favored in the market.
YingTeng explosion-proof refrigerator conforms to standard
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with 'd' Intrinsic Safety Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment for Protection by Intrinsic Safety"
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with "m" Type of Encapsulation Protection"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"
Inten explosion-proof refrigerator product features
Insulated glass design, excellent thermal performance, effective anti-fogging, and great display effects.
Extra-thick foam layer, heat-insulating, high-efficiency thick precision thermal insulation, enhanced thermal insulation effect.
Swivel wheel design for easy and lightweight movement.
Branded compressors, high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelves, with customizable layer heights for convenient storage.
220V/110V available for your choice.
Precision Computerized Temperature Control System: Equipped with an internal precision temperature sensor to maintain stable internal temperature inside the cabinet; an intelligent control fan forced air circulation system ensures uniform internal temperature.
Automatic Temperature Control: High-brightness digital display, temperature adjustable within the range of 2°C to 8°C with an accuracy of 0.1°C. Utilizes environmentally friendly non-fluorine refrigerant, international brand high-efficiency compressor, energy-saving and quiet operation.
Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.
Optional sound and light alarm system: Features high-temperature alarm, low-temperature alarm, sensor failure alarms, etc., ensuring safer storage of items; equipped with a lock on the door to prevent unauthorized access.
Inten Explosion Proof Refrigerator - Application Range
Explosion-proof refrigerators are widely used in: oil, chemical and petrochemical industries, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within Zones 0 or 1 of explosive gas mixtures with II A, II B, II C classification and temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of the IC classification, manufactured according to industrial environmental usage requirements and integrated explosion-proof technology.
