Product Specifications

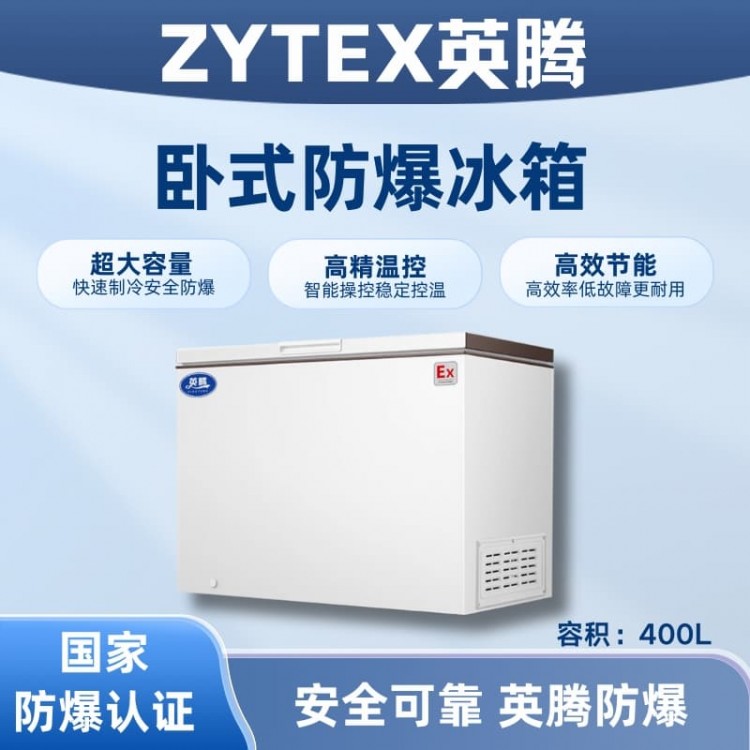

BL-450 (WS400L) Horizontal Explosion-Proof Refrigerator

Model: BL-450 (WS400L)

Brand: YingTeng

Effective Volume: 400L

Power: 192W

Net Weight: 68 kg

Power Consumption: 1.17 Kwh/24h

Dimensions (W x D x H mm): 1325 x 780 x 875

Operating Temperature: 0°C ≤ T ≤ 10°C or -18°C ≤ T ≤ 0°C

Notes: Single-temperature cabinet freezer, double-top door refrigerator, built-in shelves

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

Explosion-proof Refrigerators: Available in types such as single door vertical freezer-refrigerator, double door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single door glass refrigerator, single door cool cabinet, double door glass refrigerator, double door cool cabinet, triple door glass refrigerator, triple door cool cabinet, stainless steel double door refrigerator-freezer, double door dual temperature explosion-proof refrigerator, dual door dual temperature explosion-proof refrigerator, single door single temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been specially processed with explosion-proof technology, suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, power plants, and other locations where IIa, Iib Group T1 to T4 flammable gases, vapors, and air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for environments with temperature requirements. The YingTeng explosion-proof refrigerators have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety, making them highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres, Part 2: Equipment with 'd' Type of Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment with "i" Protection"

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with 'm' Type of Encapsulation Protection"

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Design, Selection, and Installation of Electrical Installations"

YingTeng Explosion-proof Refrigerator Product Features

High-Capacity Refrigeration/Freezing Conversion: Full Freezing, Full Refrigeration Switch Mode, Two Modes in One Space

Thickened Foam Box: The entire box is thickened, making the foam denser and locking in cold for a longer duration.

Brand compressor used: Fast refrigeration, low energy consumption, minimal noise.

Patterned aluminum sheet with embossed interior: Sealed with interior interlocking technology, corrosion-resistant, durable and long-lasting.

Mechanical temperature controller: The higher the gear, the lower the temperature; the mechanical temperature controller is less prone to damage, resulting in a longer lifespan.

Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking, worry-free operation.

Energy-saving and power-saving; low power consumption optimization, from startup frequency, cooling temperature, standby, insulation, to every level of optimization, achieving low energy consumption and rational resource utilization.

YingTeng explosion-proof refrigerator application range

Explosion-proof refrigerators are widely used in: oil, chemical and petrochemical, pharmaceutical, aerospace, laboratory, storage, and other places. They are suitable for hazardous areas within zones 0 or 1 of explosive gas mixtures with II A, II B, II C classification and temperature group T4. The BL series of industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured with integrated explosion-proof technology, meeting the requirements for industrial environment use and classified as IC.
