Product Specifications

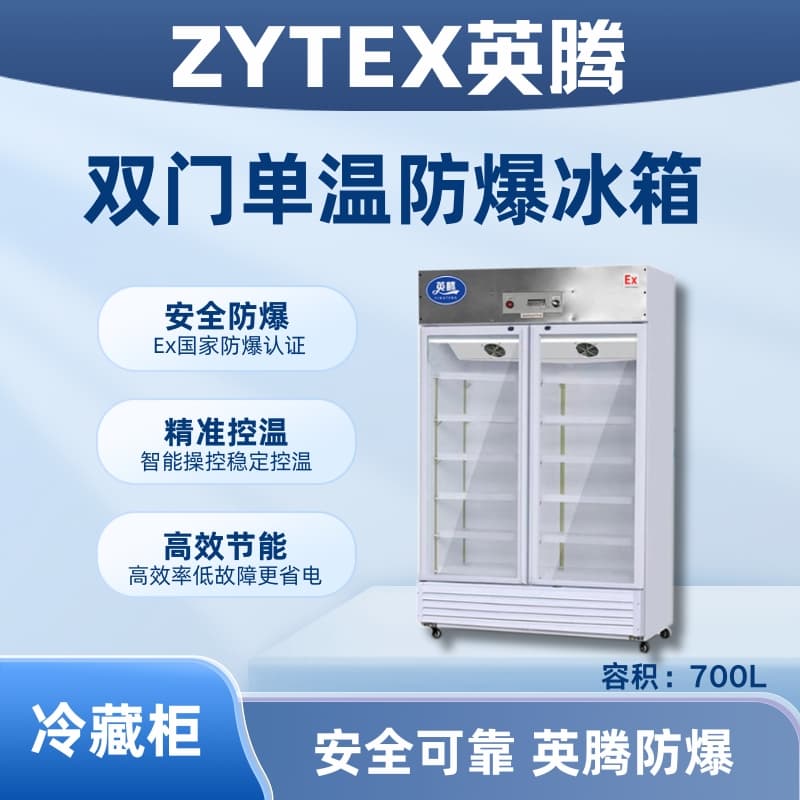

BL-900 (BL700L) Double Door Single Temperature Explosion-Proof Refrigerator

Model: BL-900 (BL700L)

Brand: YingTeng

Door Type: Single Door, Single Temperature

Climate Type: SN.ST

Total Effective Volume: 700L

Rated Voltage: AC 220V

Rated Frequency: 50Hz

Rated Power: 480W

Temperature Range: 0°C ≤ T ≤ 10°C

Rated Power Consumption: 5 Kwh/24h

Noise: 40 dB(A)

Freezing capacity: 8kg/24h

Electrical Shock Protection Type: I

Dimensions: 1080×600×2120mm

Ex db IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the physical product shall prevail.

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, the actual product should be used as the standard.

Explosion-proof Refrigerator Types: Available in single-door vertical freezer-refrigerator, double-door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature swing door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas of Zones 1 and 2. It is widely applied in scientific research, oil, chemical, pharmaceutical, and power plant environments where there may be IIa, Iib Group T1 to T4 combustible gases, steam, and air mixtures. Explosion-proof refrigerators are ideal for areas requiring temperature control. YingTeng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The full series employs brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof execution standards: The explosion-proof refrigerator has been inspected by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB 3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 1: General Requirements"

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 2: Equipment with 'd' Intrinsic Safety Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment with "i" Protection"

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with "m" Type of Encapsulation Protection"

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"

YingTeng Explosion-Proof Refrigerator Product Features

Insulated glass design, excellent thermal performance, effective anti-fogging, and great display effect.

Extra-thick foam layer with insulating properties, high-efficiency thick precise thermal insulation, enhanced thermal retention.

Swivel wheel design, easy and convenient to move;

Branded compressors, featuring high-efficiency cooling, low noise, low power consumption, and stable performance; Adjustable shelf layers with customizable height for easy storage of items.

220V/110V, your choice.

Precision Computer Temperature Control System: Equipped with a precise internal temperature sensor to maintain stable internal temperature of the chamber; an intelligent control fan forced air circulation system ensures uniform internal temperature.

Automatic Temperature Control: High-brightness digital display, temperature adjustable within the range of 2°C to 8°C with a display accuracy of 0.1°C. Utilizes environmentally friendly non-fluorine refrigerant, internationally renowned high-efficiency compressor, energy-saving and quiet operation.

Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.

Optional sound and light alarm system: Features high-temperature, low-temperature, and sensor failure alarms, ensuring safer storage of items; equipped with a lock on the door to prevent unauthorized access.

Inten explosion-proof refrigerator application range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, and other places. They are suitable for hazardous areas within the IIA, IIB, IC classification and T4 temperature group of explosive gas mixtures in zones 0 or 1. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured with integrated explosion-proof technology, meeting the requirements for industrial environment use.
