Product Specifications

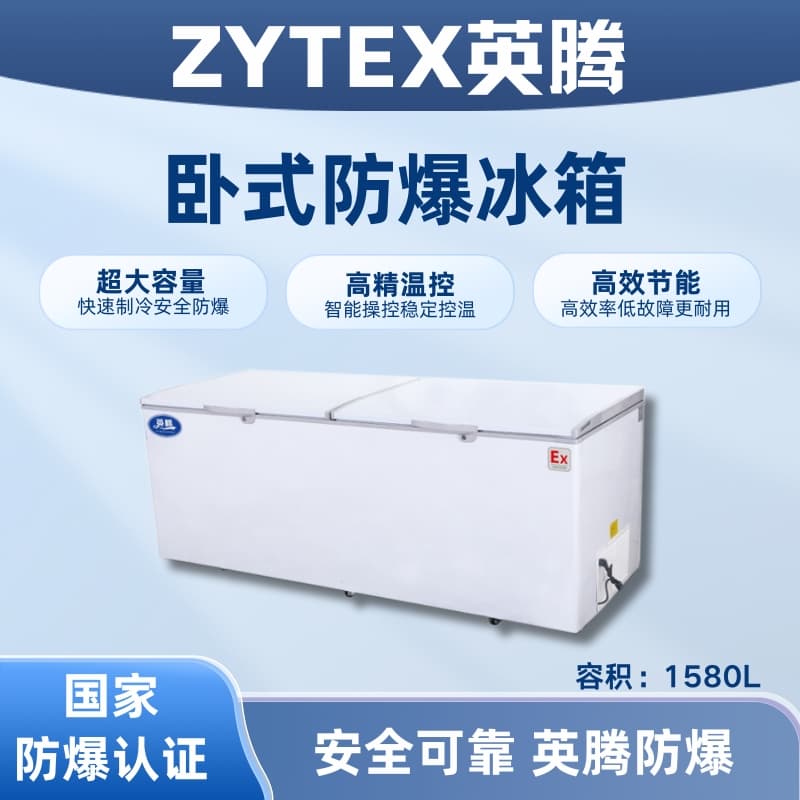

BL-450 (WS1580L) Horizontal Explosion-Proof Refrigerator

Model: BL-450 (WS1580L)

Brand: YingTeng

Effective Volume: 1580L

Power: 550W

Net Weight: 165 kg

Power Consumption: 4.01 Kwh/24h

Dimensions (Width × Depth × Height, mm): 2575×1050×1035

Operating Temperature: 0°C ≤ T ≤ 10°C or -18°C ≤ T ≤ 0°C

Note: Horizontal single temperature large room, convertible between freezing and refrigeration, commercial large space, top hinged door

Ex db ib mb II C T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual unit shall be taken as the standard.

Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, the physical product shall prevail.

Explosion-proof Refrigerator Types: Available in single door vertical freezer-refrigerator, double door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single door glass refrigerator, single door glass cooler, double door glass refrigerator, double door glass cooler, triple door glass refrigerator, triple door glass cooler, stainless steel double door refrigerator-freezer, double door dual temperature explosion-proof refrigerator, dual door double temperature explosion-proof refrigerator, single door single temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, and 86°C ultra-low temperature explosion-proof refrigerator, among others. Custom production according to customer requirements is also available.

The "Yingteng" explosion-proof refrigerator series has been processed with special explosion-proof technology, suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, power plants, and other locations where II A, II B, T1-T4 groups of combustible gases, steam, and air mixtures pose explosion hazards. Explosion-proof refrigerators are ideal for environments with temperature requirements. The Yingteng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, with both explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes renowned compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These refrigerators are highly favored in the market.

YingTeng explosion-proof refrigerator complies with standard

Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 *1 Part: General Requirements for Electrical Equipment Used in Explosive Gas Atmospheres

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 2: Equipment with 'd' Type of Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment with an Intrinsic Safety "i" Protection"

GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Equipment with 'm' Type of Encapsulation"

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Design, Selection, and Installation of Electrical Installations"

Inten Explosion-Proof Refrigerator Product Features

High-capacity refrigeration-freezing convertible: Full freezing, full refrigeration switch mode, two modes in one space.

Thickened Foam Box: The entire box is thickened, making the foam denser and locking in coldness for a longer duration.

Utilizing branded compressors: fast refrigeration, low energy consumption, and minimal noise.

Fluted Aluminum Sheet: Internally locked joint technology ensures tight sealing; corrosion-resistant and durable.

Mechanical temperature controller: The higher the gear, the lower the temperature; mechanical temperature controllers are less prone to damage, resulting in a longer lifespan.

Balanced Hinge: Effortless door opening and closing, multi-hinge balanced braking, worry-free with Wu'an.

Energy-saving and power-efficient; low power consumption optimization, from startup frequency, cooling temperature, standby, insulation, every level of optimization, achieving low energy consumption and rational resource utilization.

YingTeng explosion-proof refrigerator application range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of explosion-proof gas mixtures classified as IIA, IIB, IC, and temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured to meet industrial environmental usage requirements, classified as IC.
