Product Specifications

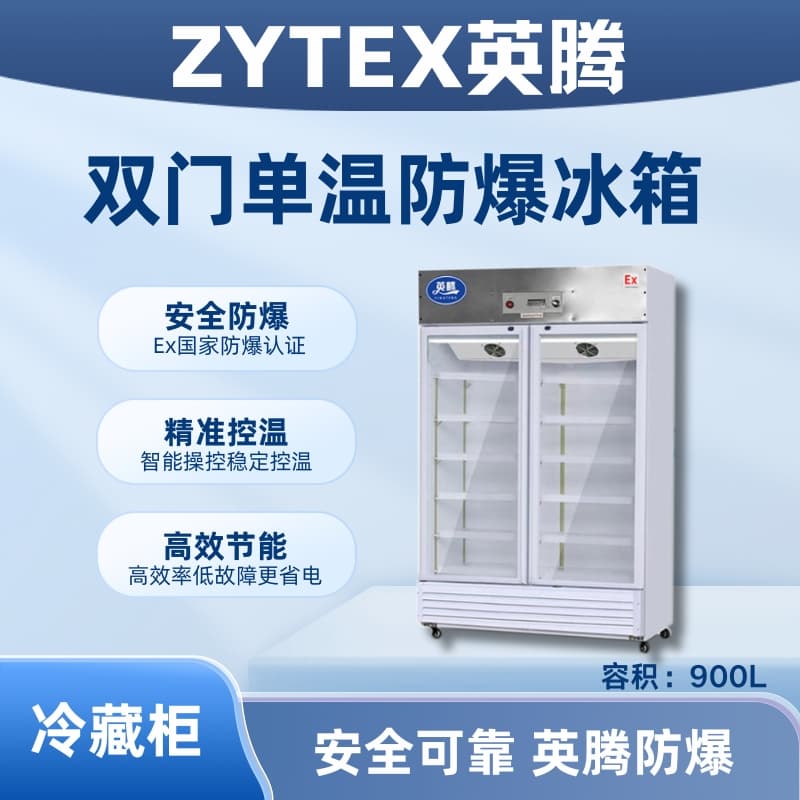

BL-900 (BL900L) Double Door Single Temperature Explosion-Proof Refrigerator

Model: BL-900 (BL900L)

Brand: YingTeng

Door Type: Single Door, Single Temperature

Climate Type: SN.ST

Total Effective Volume: 900L

Rated Voltage: AC 220V

Rated Frequency: 50Hz

Rated Power: 2550W

Temperature Range: 0°C ≤ T ≤ 10°C

Rated power consumption: 5.5 Kwh/24h

Noise: 40 dB(A)

Freezing capacity: 8kg/24h

Electrical Shock Protection Type: I

Dimensions: 1220×660×1920mm

Ex db ib mb II CT4 Gb

Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.

Note: The above technical parameters are for reference only, and the physical unit shall prevail.

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

Explosion-proof Refrigerator Types: Available in single-door upright freezer-refrigerator, double-door upright freezer-refrigerator, left-right door upright freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door cool cabinet, double-door glass refrigerator, double-door cool cabinet, triple-door glass refrigerator, triple-door cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-door dual-temperature explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "Yingteng" explosion-proof refrigerator series has been specially processed with explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, petrochemical, pharmaceutical, power plant, and other environments where II A, II B, T1 to T4 groups of combustible gases or steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are suitable for locations with temperature requirements. The Yingteng explosion-proof refrigerators have passed inspections by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products and have been issued explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The full series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market.

YingTeng explosion-proof refrigerator conforms to the execution standard

Explosion-proof Execution Standards: The explosion-proof refrigerator has been inspected by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 1: General Requirements"*1

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres, Part 2: Equipment with "d" Explosion Protection"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment with "Intrinsic Safety" "Protection""

GB3836.9-2021 *9 Part: Equipment for use in explosive gas atmospheres - Encapsulation type "m" protected equipment

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Design, Selection, and Installation of Electrical Installations"

Inten explosion-proof refrigerator product features

Insulated glass design, excellent thermal performance, efficient anti-fogging, and great display effects.

Extra-thick foam layer with thermal insulation properties; highly efficient and thick precision thermal insulation; enhanced thermal retention effect.

Swivel wheel design, easy and convenient to move;

Branded compressors, featuring high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelf levels, with customizable height, for convenient storage of items.

220V/110V available for your choice.

Precision Computer Temperature Control System: Equipped with a precise temperature sensor inside the chamber to maintain stable internal temperature; an intelligent control fan forced air circulation system to ensure uniform internal temperature.

Automatic Temperature Control: High-brightness digital display, temperature setting within the range of 2°C to 8°C, display accuracy of 0.1°C. Uses non-fluorine environmentally friendly refrigerant, international brand high-efficiency compressor, energy-saving and quiet.

Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.

Optional sound and light alarm system: featuring high-temperature and low-temperature alarms, sensor failure alerts, and more, ensuring safer storage of items; equipped with a lock on the door to prevent unauthorized access.

Inten Explosion-Proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of explosive gas mixtures with II A, II B, II C classification and temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of the IC classification, manufactured in accordance with industrial environmental usage requirements.
