Product Specifications

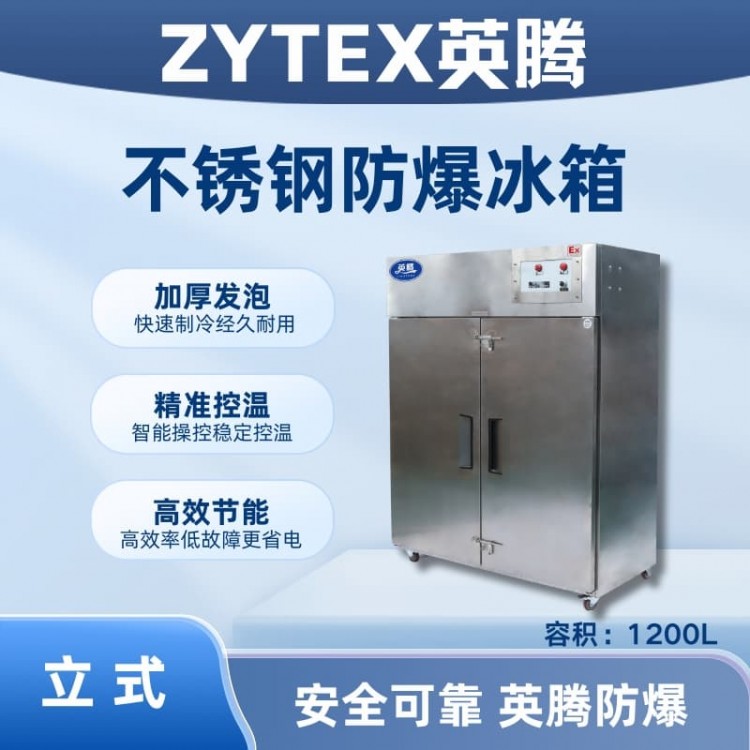

BL-600 (BX1200L) Stainless Steel Explosion-Proof Refrigerator
Model: BL-600 (BX1200L)
Brand: YingTeng
Material: 201/304
Power: 220V/50Hz
Power: 150W
Noise: ≤41dB(A)
Power Consumption: 8.4 Kwh/24h
Electrical Shock Protection Type: I
Total Effective Volume: 1200L
Freezing capacity: 65kg/24h
Dimensions: /
Net Weight: 150 kg
Operating Temperature: 0°C ≤ T ≤ 10°C / -30°C ≤ T ≤ -15°C
Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, the physical unit is to be taken as the standard.
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual unit shall be the standard.
Explosion-proof Refrigerator Types: Available in single-door upright freezing and refrigeration, double-door upright freezing and refrigeration, left-right door upright freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerators, single-door glass coolers, double-door glass refrigerators, double-door glass coolers, triple-door glass refrigerators, triple-door glass coolers, stainless steel double-door refrigerators and freezers, double-door dual-temperature explosion-proof refrigerators, single-door single-temperature explosion-proof refrigerators, multi-temperature multi-door explosion-proof refrigerators, glass door refrigerators, horizontal explosion-proof refrigerators, horizontal dual-temperature explosion-proof refrigerators, stainless steel explosion-proof refrigerators, ultra-low temperature explosion-proof refrigerators, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "Yingteng" explosion-proof refrigerator series has been processed with special explosion-proof technology, suitable for use in Class 1 and 2 flammable and explosive environments. It is widely applicable in scientific research, petrochemical, pharmaceutical, power plant, and other places where there may be or could be II A, IIB, T1 to T4 groups of combustible gases, steam, and air mixtures forming explosive hazards. Explosion-proof refrigerators are suitable for environments with temperature requirements. Yingteng explosion-proof refrigerators have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, and have obtained explosion-proof certificates and CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The full series of explosion-proof refrigerators are equipped with brand-name compressors, microcomputer intelligent control, digital display, and offer advantages such as low noise, stable performance, simple operation, and safety, making them highly favored by the market.
YingTeng explosion-proof refrigerator complies with standard
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 *1 Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 2: Equipment with "d" Explosion-Proof Protection"
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment for Protection by Intrinsic Safety"
GB3836.9-2021 *Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulation type "m" protected equipment
GB3836.15-2017 *15 Part: Design, Selection, and Installation of Electrical Equipment for Explosive Gas Atmospheres
YingTeng Explosion-Proof Refrigerator Product Features
Insulated glass design, excellent thermal insulation, effective anti-fogging, and superior display effects.
Super-thick foam layer, thermal insulation properties; high-efficiency, thick, precise insulation; enhanced thermal insulation effect.
Swivel wheel design, easy and lightweight movement.
Branded compressors, high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelves, with customizable layer heights for convenient storage;
220V/110V available for your choice.
Precision computerized temperature control system: features an internal precise temperature sensor to maintain stable internal temperature of the chamber; intelligent control fan-assisted forced air circulation system ensures uniform internal temperature.
Automatic Temperature Control: High-brightness digital display, temperature can be set within the range of 2°C to 8°C, with display accuracy of 0.1°C. Uses environmentally friendly refrigerant without fluorine and an international brand high-efficiency compressor for energy-saving and noiseless operation.
Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.
Optional sound and light alarm system: Features high-temperature, low-temperature, and sensor failure alarms, ensuring safer storage of items; equipped with a lock on the door to prevent unauthorized access.
Inten explosion-proof refrigerator application scope
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of Class II A, II B, or II C explosion-proof gas mixtures with temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators of Class IC, manufactured in accordance with industrial environmental usage requirements and integrated explosion-proof technology.
