Product Specifications

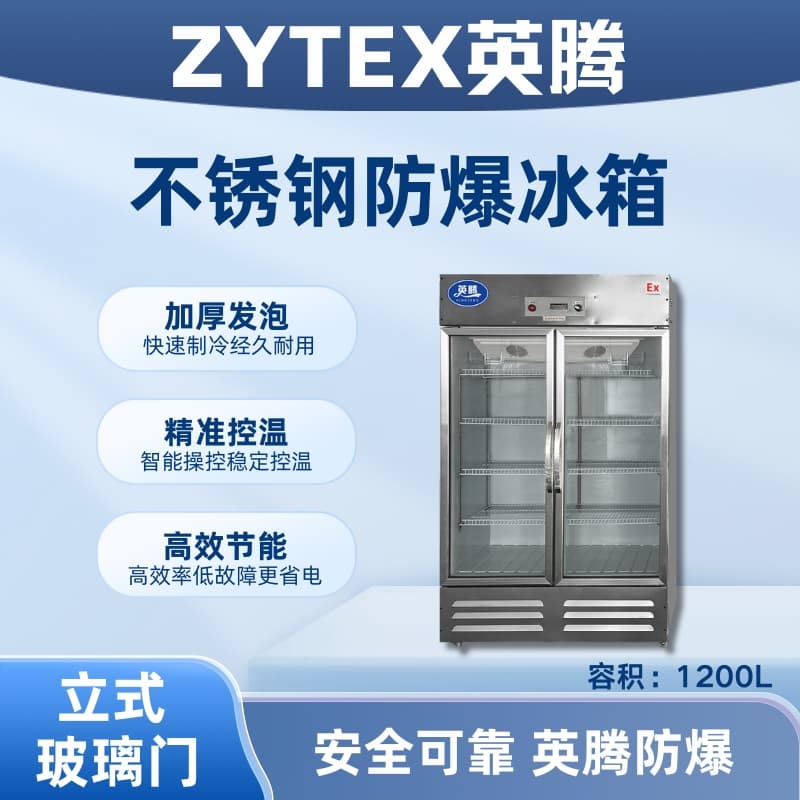

BL-600 (BX1200L) Stainless Steel Explosion-Proof Refrigerator

Model: BL-600 (BX1200L)

Brand: YingTeng

Material: 201/304

Power Supply: 220V/50Hz

Power: 150W

Noise: ≤41 dB(A)

Power Consumption: 8.4 Kwh/24h

Electrical Shock Protection Type: I

Total Effective Volume: 1200L

Freezing capacity: 65kg/24h

Dimensions: /

Net Weight: 150 kg

Operating Temperature: 0°C ≤ T ≤ 10°C / -30°C ≤ T ≤ -15°C

Explosion-Proof Mark: Ex db ib IIC T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, the physical unit is the standard.

Explosion-proof Refrigerator Types: Available in single-door vertical freezer-refrigerator, double-door vertical freezer-refrigerator, left-right door vertical freezer-refrigerator, horizontal freezer-refrigerator, single-door glass refrigerator, single-door glass cool cabinet, double-door glass refrigerator, double-door glass cool cabinet, triple-door glass refrigerator, triple-door glass cool cabinet, stainless steel double-door refrigerator-freezer, double-door dual-temperature explosion-proof refrigerator, dual-temperature double-door explosion-proof refrigerator, single-door single-temperature explosion-proof refrigerator, multi-temperature multi-door explosion-proof refrigerator, glass-door refrigerator explosion-proof refrigerator, horizontal explosion-proof refrigerator, horizontal dual-temperature explosion-proof refrigerator, stainless steel explosion-proof refrigerator, ultra-low temperature explosion-proof refrigerator, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.

The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas of Zones 1 and 2. It is widely applied in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with both explosion-proof certificates and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market.

Yinteng explosion-proof refrigerators meet the following standards:

Explosion-proof execution standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:

GB3836.1-2021 *1 Part: General Requirements for Electrical Equipment Used in Explosive Gas Atmospheres

GB3836.2-2021 "Electrical Equipment for Explosive Gas Atmospheres – Part 2: Equipment with 'd' Protection Type"

GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 4: Equipment with "Intrinsic Safety" Protection"

GB3836.9-2021 *Electrical Equipment for Explosive Gas Atmospheres - Part 9: Equipment with "m" type of enclosure for casting**

GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres*Part 15: Design, Selection, and Installation of Electrical Installations"

YingTeng Explosion-Proof Refrigerator Product Features

Insulated glass design, excellent thermal performance, effective anti-fogging, and excellent display effects.

Extra-thick foam layer, heat-insulating, high-efficiency thick precision thermal insulation, enhanced heat retention.

Swivel wheel design, easy and light to move.

Branded compressors, featuring high-efficiency cooling, low noise, low power consumption, and stable performance; adjustable shelving, with customizable layer heights for easier storage;

Choose from 220V/110V.

Precision Computer Temperature Control System: Equipped with a precision temperature sensor inside the cabinet to maintain stable internal temperature; an intelligent control fan forced air circulation system to ensure uniform internal temperature.

Automatic Temperature Control: High-brightness digital display, temperature adjustable within the range of 2°C to 8°C with a display accuracy of 0.1°C. Utilizes environmentally friendly refrigerant without Freon, a high-efficiency international brand compressor, energy-saving and noiseless.

Air-cooled high-efficiency condenser, finned evaporator, rapid refrigeration.

Optional sound and light alarm system: Features high-temperature, low-temperature, and sensor failure alarms, ensuring safer storage of items; equipped with a lock on the door to prevent unauthorized access.

Inten Explosion-Proof Refrigerator Application Range

Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas within zones 0 or 1 of explosion-proof gas mixtures with IIA, IIB, IC classification and temperature group T4. The BL series industrial-grade explosion-proof refrigerators/freezers/coolers are explosion-proof refrigerators manufactured according to industrial environmental usage requirements, utilizing integrated explosion-proof technology.
