Product Specifications

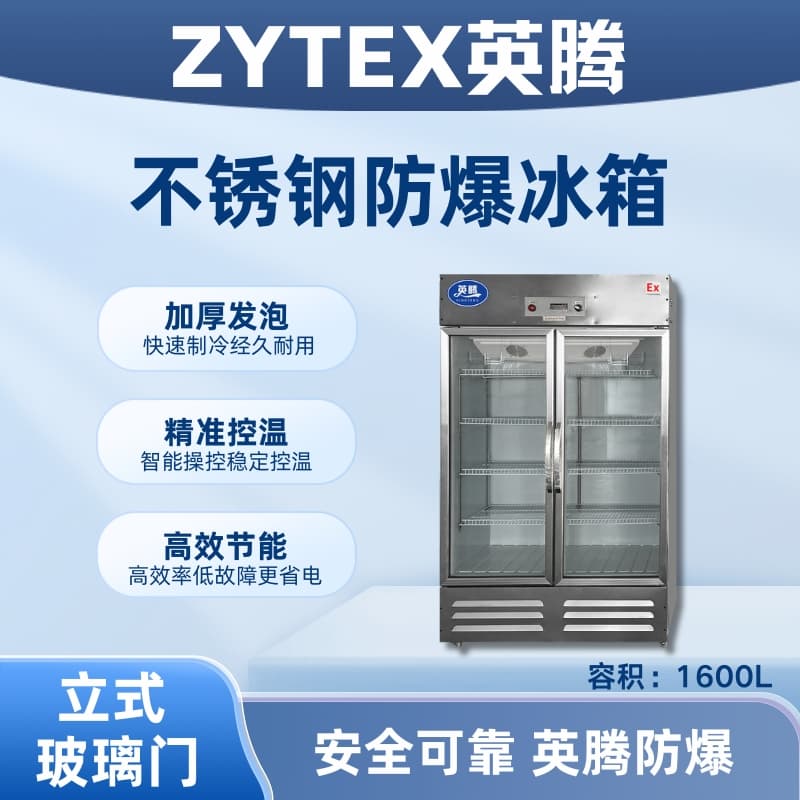

BL-600(BX1600L) Stainless Steel Explosion-Proof Refrigerator
Model: BL-600 (BX1600L)
Brand: YingTeng
Material: 201/304
Power Supply: 220V/50Hz
Power: 740W
Noise: ≤41 dB(A)
Power Consumption: 1.3 KWh/24h
Electrical Shock Protection Type: I
Total Effective Volume: 1600L
Freezing Capacity: 80kg/24h
Dimensions: /
Net Weight: 180 kg
Operating Temperature: 0°C ≤ T ≤ 10°C / -30°C ≤ T ≤ -15°C
Ex db IIB T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual unit is the standard.
Explosion-proof Refrigerator Types: Available in single-door vertical freezing and refrigeration, double-door vertical freezing and refrigeration, left-right hinged vertical freezing and refrigeration, horizontal freezing and refrigeration, single-door glass refrigerators, single-door glass coolers, double-door glass refrigerators, double-door glass coolers, triple-door glass refrigerators, triple-door glass coolers, stainless steel double-door refrigerators with freezing, double-door dual-temperature explosion-proof refrigerators, single-door single-temperature explosion-proof refrigerators, multi-temperature multi-door explosion-proof refrigerators, glass-door refrigerators with explosion-proof, horizontal explosion-proof refrigerators, horizontal dual-temperature explosion-proof refrigerators, stainless steel explosion-proof refrigerators, ultra-low temperature explosion-proof refrigerators, -22°C explosion-proof refrigerator with glass door, -25°C explosion-proof refrigerator, -40°C explosion-proof refrigerator, -60°C explosion-proof refrigerator, 86°C ultra-low temperature explosion-proof refrigerator, and various other specifications. Custom production according to customer requirements is also available.
The "YingTeng" explosion-proof refrigerator series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases and steam-air mixtures may form explosive hazards. Explosion-proof refrigerators are ideal for locations with temperature requirements. The YingTeng explosion-proof refrigerators have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certificate. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market.
Yinteng explosion-proof refrigerator conforms to the execution standard
Explosion-proof Execution Standards: The explosion-proof refrigerator has been tested by the National Explosion-proof Electrical Product Quality Inspection and Testing Center and meets the following standards:
GB3836.1-2021 "Electrical Equipment for Explosive Gas Atmospheres*1 Part: General Requirements"
GB3836.2-2021 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Equipment with "d" Type of Intrinsic Safety Protection
GB3836.4-2021 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Equipment for Protection by Intrinsic Safety"
GB3836.9-2021 "Electrical Equipment for Explosive Gas Atmospheres*Part 9: Encapsulation Type 'm' Protected Equipment"
GB3836.15-2017 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Design, Selection, and Installation of Electrical Systems"
Inten Explosion Proof Refrigerator Product Features
Insulated glass design, excellent thermal performance, highly effective anti-fogging, and excellent display results.
Thick foam layer with heat-insulating properties, high-efficiency thick precision insulation, enhanced thermal insulation effect.
Swivel wheel design, easy and light to move
Branded compressors, high-efficiency cooling, low noise, low power consumption, and stable performance; ◎Adjustable shelf levels, with customizable height for easier item storage;
220V/110V available for your choice.
Precision computerized temperature control system: Equipped with a precise temperature sensor inside the cabinet, it maintains stable internal temperature; an intelligent control fan forced-air circulation system ensures uniform internal temperature.
Automatic Temperature Control: High brightness digital display, temperature can be set within the range of 2°C to 8°C, with a display accuracy of 0.1°C. Utilizes non-fluorine environmentally friendly refrigerant, international brand high-efficiency compressor, energy-saving and quiet operation.
High-efficiency air-cooled condenser, finned evaporator, rapid refrigeration.
Optional with audio-visual alarm system: featuring high temperature alarm, low temperature alarm, sensor failure and other audio-visual alarm functions for safer item storage; door equipped with a lock to prevent unauthorized door opening.
Inten explosion-proof refrigerator application range
Explosion-proof refrigerators are widely used in: oil, chemical industry, pharmaceuticals, aerospace, laboratories, storage, etc. They are suitable for hazardous areas in Zones 0 or 1 of explosion-proof gas mixtures classified as IIA, IIB, IC, and temperature group T4. The BL series of industrial-grade explosion-proof refrigerators/freezers/coolers are manufactured with integrated explosion-proof technology, designed to meet the requirements of industrial environments as IC-grade explosion-proof refrigerators.
